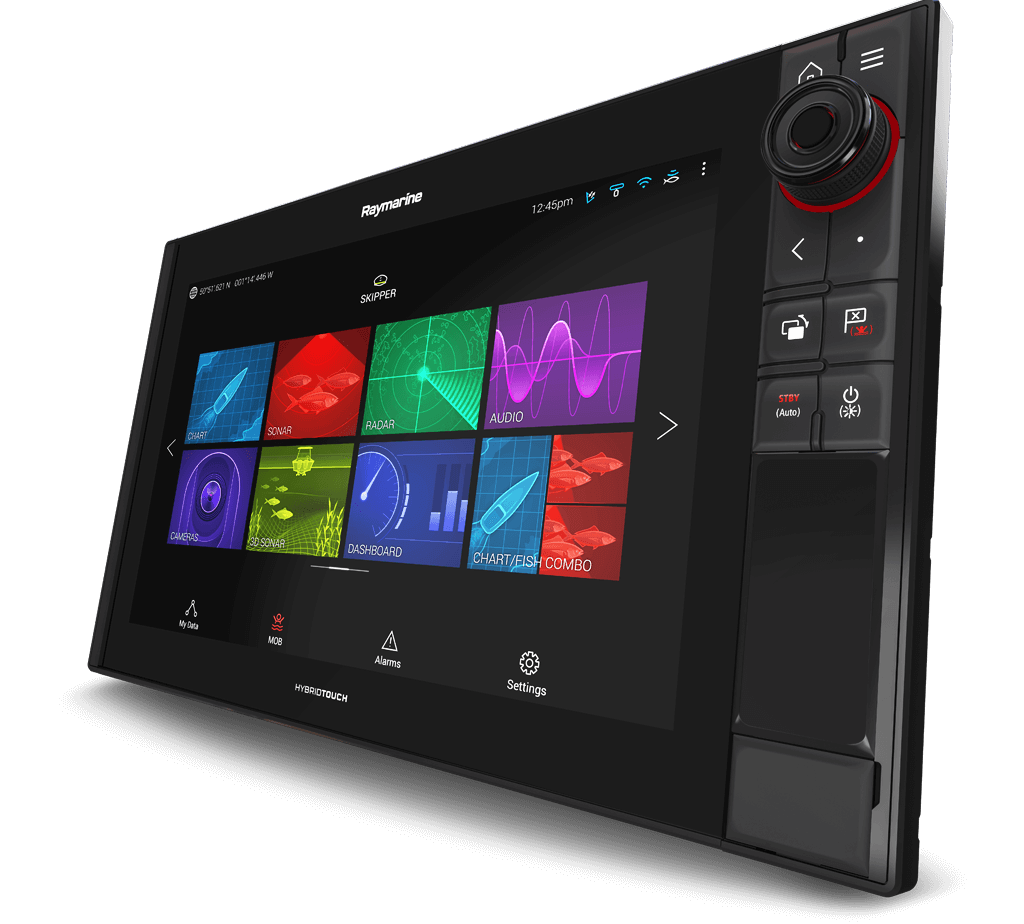

Axiom Pro 16 is engineered for captains that want it all. Available with RealVision 3D, 1kW CHIRP sonar, and Raymarine HybridTouch control, Axiom Pro is the new standard for “allin-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-defi nition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fl uid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.
Sonar is Standard... Axiom Pro is available with a single channel High CHIRP sonar built in. For offshore anglers choose Axiom Pro with RealVision 3D sonar plus a 1kW sonar built-in.
Intuitive Control... Simple-to-use Lighthouse 3 OS with HybridTouch control gives captains the flexibility of multi-touch interaction and rough weather keypad control.
Powerful Performance... Quad Core processing combined with super bright, high definition IPS display technology delivers blazing speed and stunning clarity.
Features
- Blazing Fast: Quad core processor delivers instantaneous response and the ability to run multiple apps simultaneously without any slowdowns.
- Bold and Bright: Optical bonding technology and IPS display panels give you stunning Colour, clarity, and contrast in all lighting conditions. Axiom Pro looks great even through polarized sunglasses.
- Hybridtouch: Control Axiom Pro from its multi-touch screen, its buttons and rotary knob, or any combination of both. This choice is yours.
- Custom Keys: Get instant access to your favourite function with user-programmable Custom Key.
- Lighthouse: Fast, fluid and easy to learn. The Lighthouse 3 interface is uncluttered and easy to personalise for your style of boating.
Specifications
- Screen Size: 15.6" IPS Optically Bonded LCD
- Display Resolution: 1920 x 1080 pixels
- Brightness: 1,200 nits
- Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
- Navionics+ Aus/NZ Charts Included
- Screen Type: Super bright IPS display with optical bonding. Multitouch support
- Mounting: Top, Front, and optional RAM ball mount adapter
- Waterproofing: IPX6 / IPX7
- Memory: 16GB Internal / x2 microSDXC slots
- USB: 1 x USB microAB
- Voltage: 12V and 24V DC (8 V to 32 DC)
- Weight: 10.9kg (24.0blbs)
- Operating Temperature: -13deg F to 131deg F (-25deg C to +55deg C)
- Storage Temp: -22deg F to 158deg F (-30deg C to +70deg C)
- Power Consumption Axiom Pro 16: ~45W
- Ethernet: 2 x 10/100 Mbits/ Network (RayNet)
- Wi-FI: Yes
- NMEA 0183: x2 NMEA 0183 input and x1 NMEA 0183 output (part of power cable)
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Radar Compatible: Yes
- Thermal Night Vision Compatible: Yes
- Video Cameras: 1 x Analogue input (BNC). Up to 10 IP Cameras
- Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
- External Sonar Compatible: Yes
- Optional Remote Controls: Yes
- AIS: Yes
- Audio Integration: Yes
- Autopilot: Control: Evolution Autopilot Control
- Digital Switching: Empirbus compatible
- Dimensions: 17.6" x 10.2" x2.72" (447 x 258 x 69 mm)
Contents
- MFD Display (E70481 or E70371)
- RayNet (F) to Raynet (F) Cable – 2M (A62361)
- Mounting Fixings
- Suncover (A80534)
- Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)
- Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)
- Panel Seal Gasket
- Bezel Pieces and Home / Menu Button
- Quick Start Guide
- Warranty Card
- Raymarine window decal
