Quantum Cabo Spinning Reel

Description

The Quantum Cabo is a fully sealed saltwater spinning reel built for anglers who put real pressure on their gear. Sealed to IPX8 standards through Quantum's Sealoq 8 system, the Cabo shuts water, salt and sand out of the gearbox and drag stack, so it keeps running smoothly through a hard season of beach, rock and blue-water fishing. A high-strength aluminium frame and sideplate hold the machined GearTeq gearing in alignment under load, while the CFX200 carbon fibre drag stack delivers a smooth, consistent drag curve and up to 20.4 kg of stopping power in the largest size.

Davo's stock the Cabo in five sizes from 3000 through to 8000. The 3000 and 4000 suit estuary, inshore and light beach work, the 5000 bridges into heavier inshore and light offshore duties, and the 6000 and 8000 handle serious casting, jigging and live baiting offshore. Species such as snapper, mulloway, tailor, salmon, kingfish, tuna and trevally are all well within the range, though the Cabo is certainly not limited to those - it is a general-purpose saltwater workhorse that will cover most styles of fishing you point it at.

Features

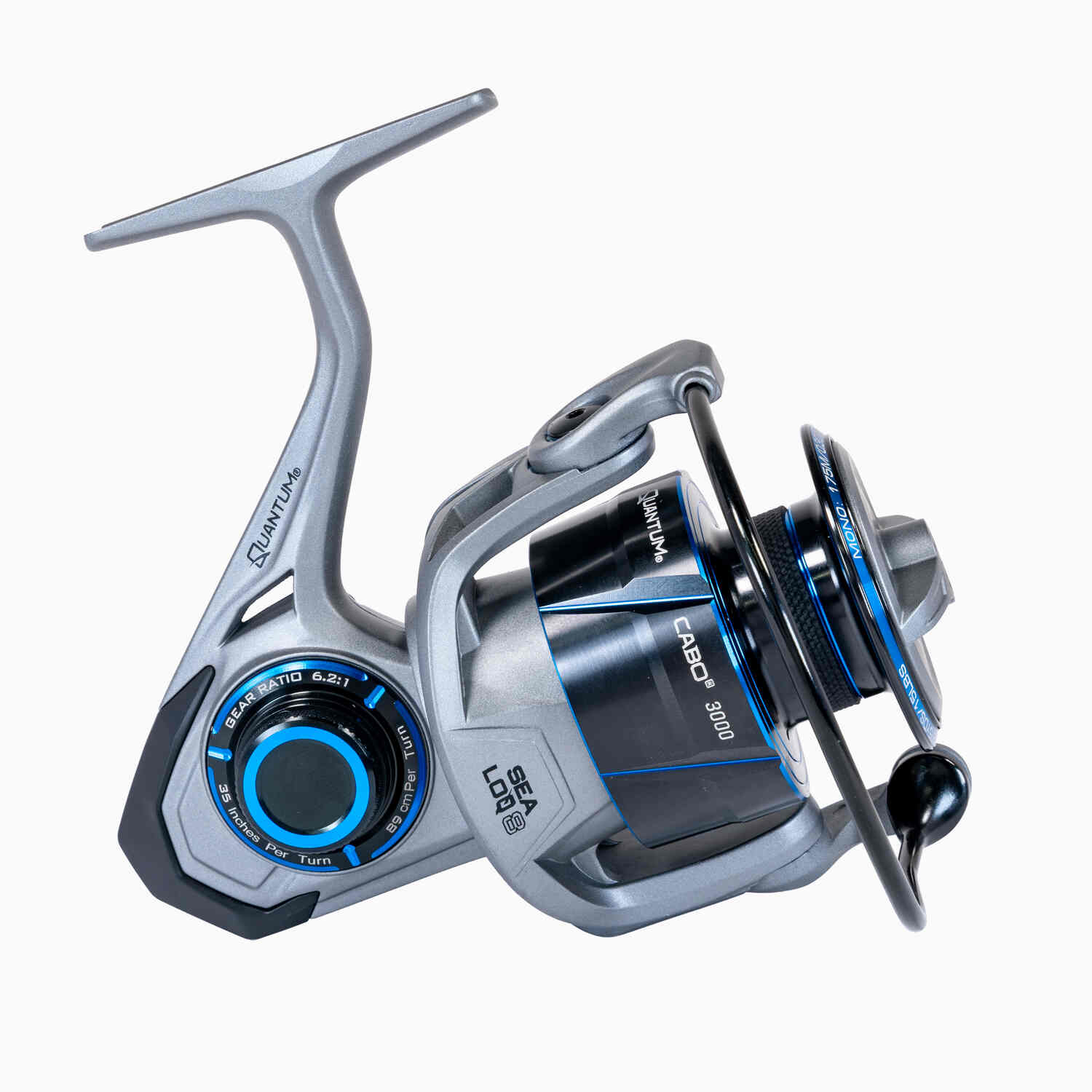

• Sealoq 8 sealing rated to IPX8 - keeps water, salt and sand out of the internals
• CFX200 carbon fibre drag system delivering 25-45 lb (11.3-20.4 kg) of maximum drag depending on size, with a smooth and consistent drag curve
• GearTeq machined gearing for a precise gear feel, strong cranking power and extended gear life
• CASTEQ slow oscillation spool for a tidier line lay and improved casting distance with braid
• High-strength aluminium frame and sideplate that keep the gears aligned under heavy load
• One-piece bail wire
• 6+1 bearing system across every size in the range
• Aluminium drive gear in the smaller sizes and a brass drive gear in the 6000 and 8000
• Line capacity, gear ratio and maximum drag printed on the spool skirt for quick reference

Specifications

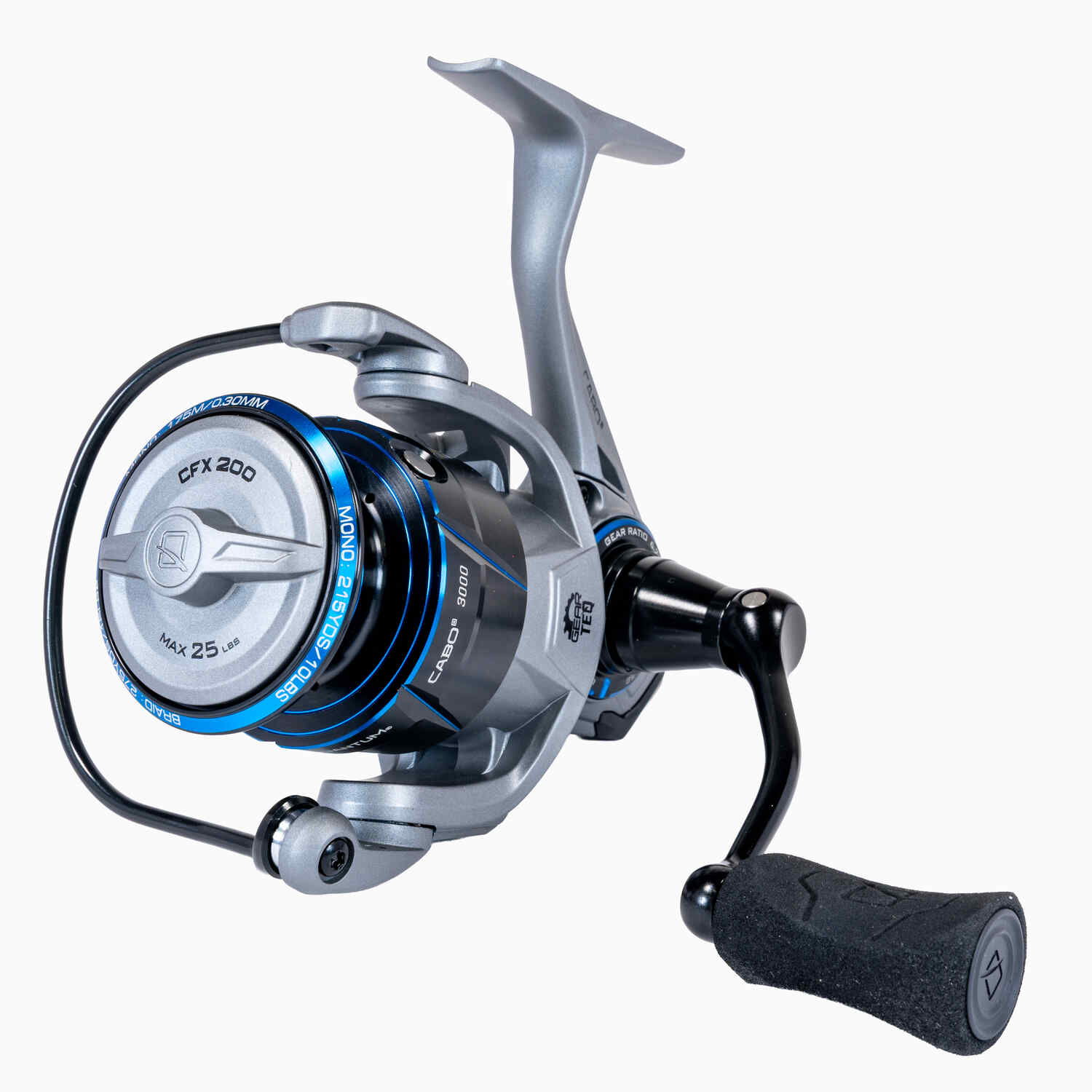

3000

• Gear ratio: 6.2:1
• Bearings: 6+1
• Maximum drag: 25 lb (11.3 kg)
• Retrieve rate: 35 in (89 cm) per turn
• Mono capacity: 10 lb / 215 yd (197 m)
• Braid capacity: 15 lb / 275 yd (251 m)
• Weight: 10.6 oz (301 g)

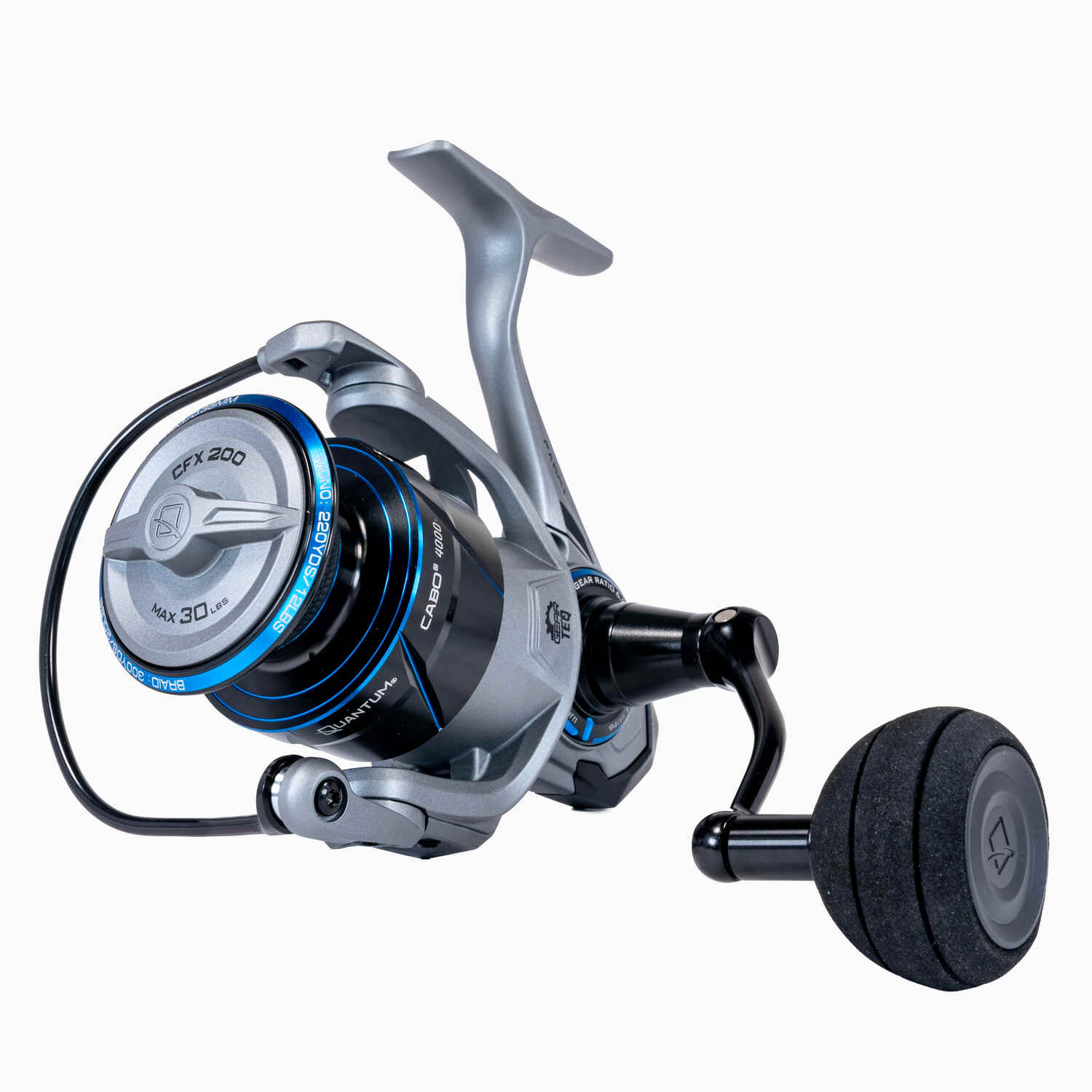

4000

• Gear ratio: 6.2:1
• Bearings: 6+1
• Maximum drag: 30 lb (13.6 kg)
• Retrieve rate: 37 in (94 cm) per turn
• Mono capacity: 12 lb / 220 yd (201 m)
• Braid capacity: 20 lb / 300 yd (274 m)
• Weight: 11.7 oz (332 g)

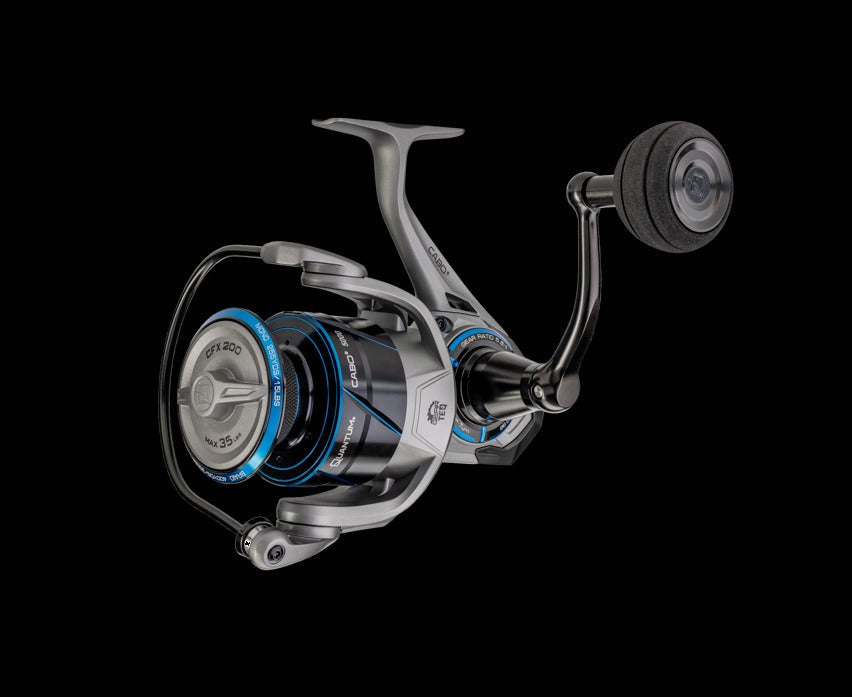

5000

• Gear ratio: 5.6:1
• Bearings: 6+1
• Maximum drag: 35 lb (15.9 kg)
• Retrieve rate: 38 in (97 cm) per turn
• Mono capacity: 15 lb / 255 yd (233 m)
• Braid capacity: 30 lb / 400 yd (366 m)
• Weight: 16.6 oz (471 g)

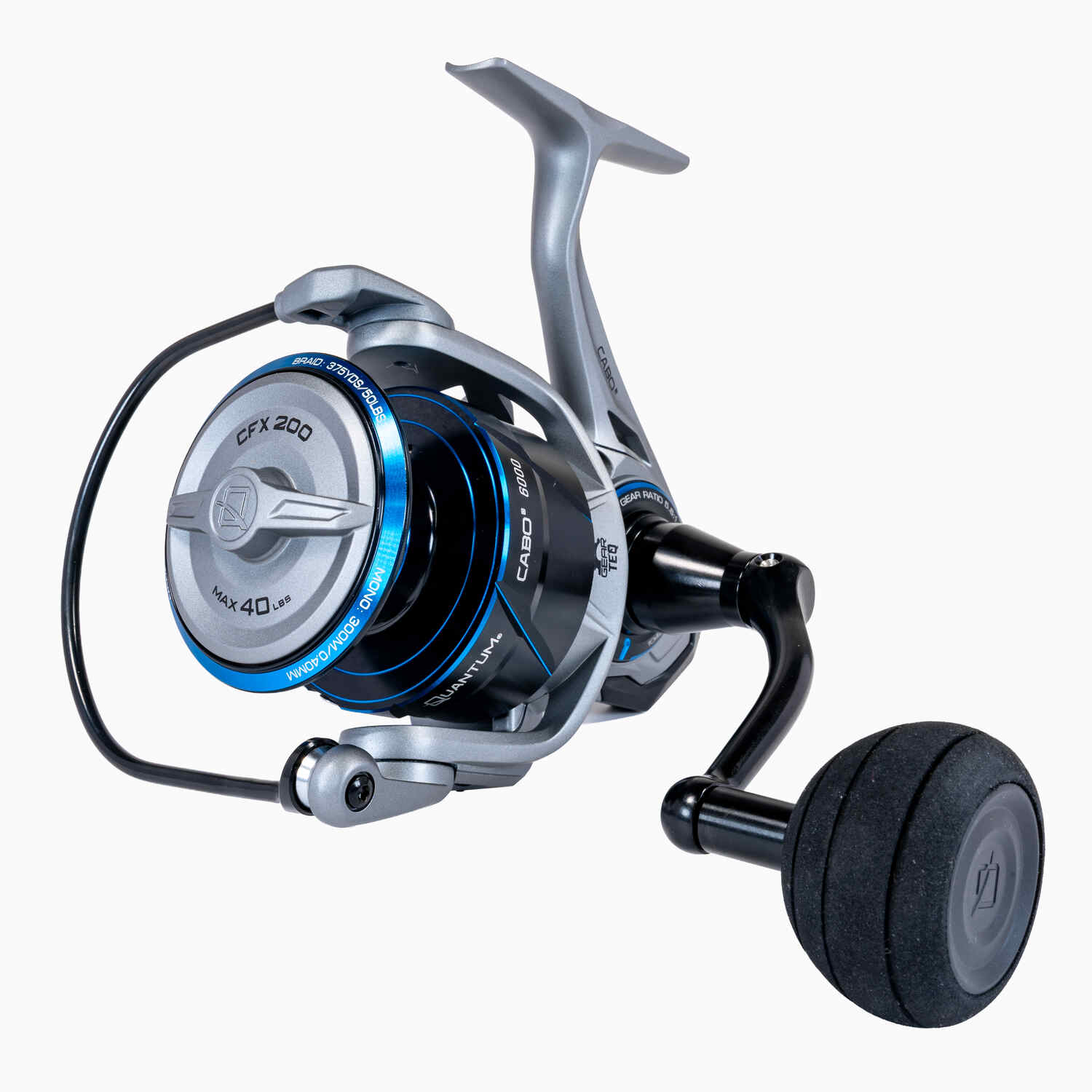

6000

• Gear ratio: 5.6:1
• Bearings: 6+1
• Maximum drag: 40 lb (18.1 kg)
• Retrieve rate: 41 in (104 cm) per turn
• Mono capacity: 20 lb / 315 yd (288 m)
• Braid capacity: 50 lb / 375 yd (343 m)
• Weight: 20.7 oz (587 g)

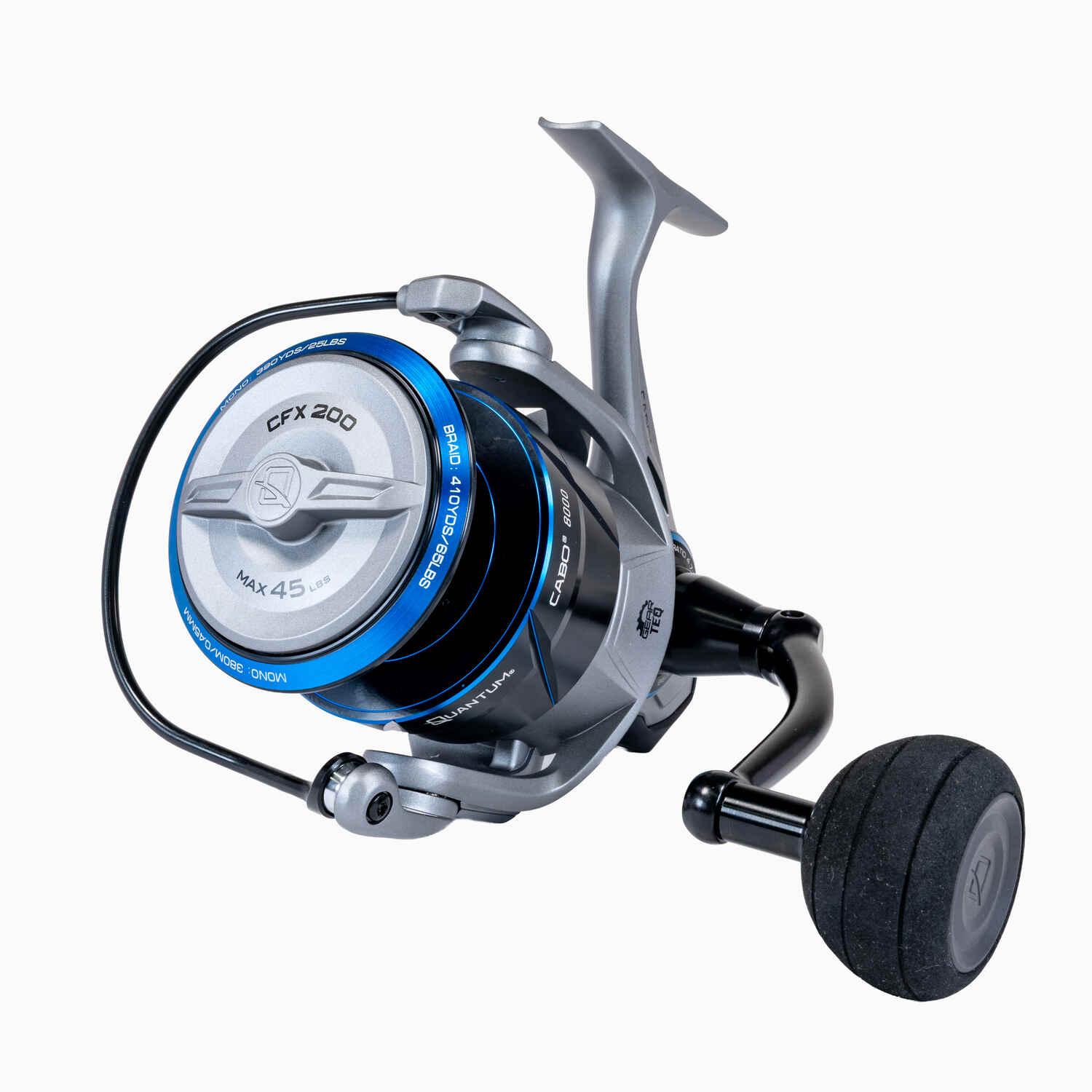

8000

• Gear ratio: 4.7:1
• Bearings: 6+1
• Maximum drag: 45 lb (20.4 kg)
• Retrieve rate: 38 in (97 cm) per turn
• Mono capacity: 25 lb / 390 yd (357 m)
• Braid capacity: 65 lb / 410 yd (375 m)
• Weight: 26 oz (737 g)
