Humminbird 82324053429

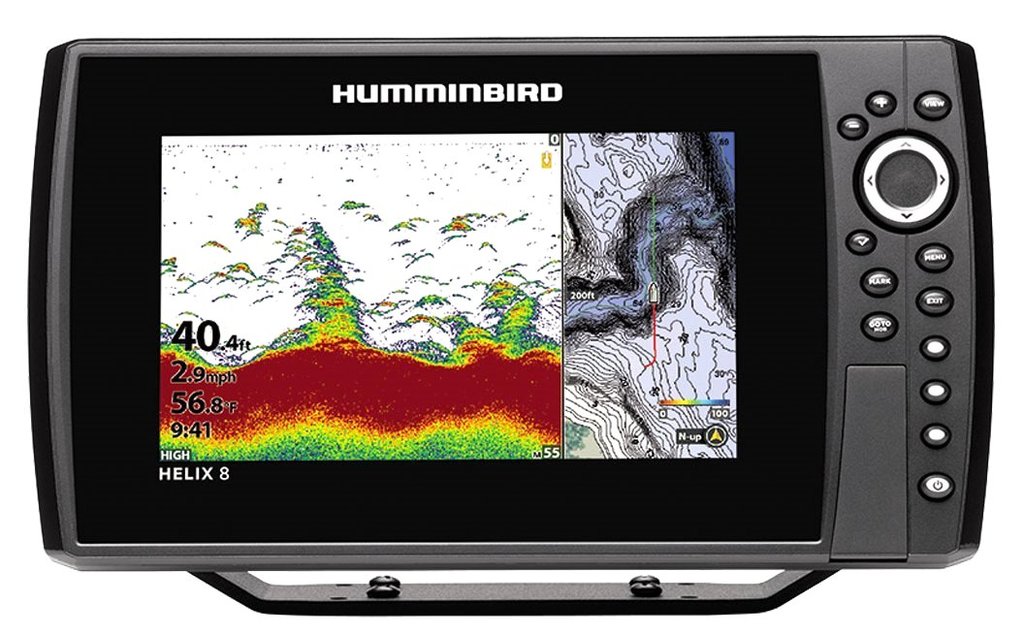

Humminbird Helix 8 Gen 3 G3N Chirp DS GPS with Chartplotter Sonar Sounder Fishfinder Unit - 104569

Rated 5.0 out of 5
Based on 1 review

FREE SHIPPING ON ORDERS OVER $99*


These units have been priced to clear and will not last long. Purchase from a fully authorized Minn Kota and Humminbird Australia Pro Store!

If fishing is in your DNA, there's no such thing as "too early" or "too far." High expectations go with the territory. The Humminbird Helix 8 CHIRP SONAR G3N GPS/Fishfinder features an 8inch display AND Dual Spectrum CHIRP Sonar. Includes GPS mapping, built-in Bluetooth, Ethernet networking capabilities, AutoChart Live with depth, vegetation and bottom hardness mapping. Top it all off with Humminbird Basemap built-in.

Dual Spectrum CHIRP
Traditional sonar at it's absolute best. Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of fish-holding structure and the bottom. Powered by Humminbird's proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.

SwitchFire Sonar
Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.

AutoChart Live
Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.

Ethernet Networking
High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link, 360 Imaging and CHIRP Radar.

Bluetooth
Enable features like wireless software updates from the Humminbird FishSmart App and also keep your phone out of the water and in your pocket by displaying notifications on your Humminbird. Additionally, you can take control of your most-used features with an optional Bluetooth remote (RC2).

LakeMaster Compatible
Upgrade to the unrivaled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours, to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count.

Navionics Compatible
Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.

Full Kit Included in the Box
Transducer
Mounting Hardware
Power cable
Gimbal mounting bracket


Features

CHIRP Digital Sonar
Dual Spectrum CHIRP
SwitchFire
10Hz Internal Precision GPS
HB Basemap
Ethernet Networking
Auto Chart Live

Specifications

Series: HELIXDisplay Size Diagonal: 8inch
Display Pixel Matrix: 1024H x 600V
Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
CHIRP Imaging-Frequencies Supported: MEGA DI (1075-1150 kHz), 455 kHz (440-500 kHz)
Interface: Keypad Control
Memory Card Slot: Dual Micro SD
Power Draw: 1 Amp
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 8000 Watts
Power Output RMS: 1000 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Gimbal
Mount-Standard Size: 12.00 W x 7.0 H x 4.13 D
Mount-Optional: In-Dash Mounting Kit
Mount-Optional Size: 12.00 W x 6.63 H x 1.32 D
Transducer Included: XNT 9 HW MDI 75 T
Transducer Mount Location: Transom
GPS Chartplotting: Included
GPS Receiver: Internal
GPS Trackplotting: Included
Waypoints, Routes, Tracks/Points: 2,750, 45, 50/20,000
360 Imaging Compatibility: Yes
Humminbird Basemap: Included
LakeMaster Compatibility: Yes
Minn Kota i-Pilot Link Compatibility: Yes
Minn Kota Talon Shallow Water Anchor Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum + Compatibility: Yes
Platinum Compatibility: Yes
Radar Compatibility: Yes
5-Port Ethernet Switch Compatibility: Yes
AIS Compatibility: Optional
Heading Sensor GPS Compatibility: Yes
NMEA2000: Optional
Target Separation: 2.5inch
Upgradable Software: Yes
View Preset Keys: Yes
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colours Grayscale: 16-Bit
Display Type: Colour TFT
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: Yes
