Garmin 753759264543

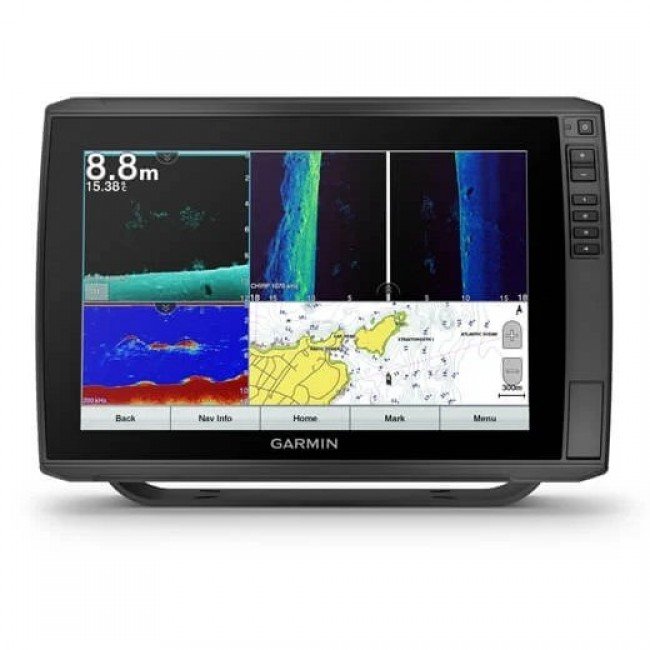

Garmin Echomap Ultra 125Sv GPS Chartplotter and Sonar Sounder Fishfinder with GT56UHD-TM Transducer 010-02528-20

PHONE ORDERS (07) 4357 8991

Garmin EchoMap Ultra 125sv Combo features all the types of imaging and Sonar you could need with Ultra High-Definition ClearVu Sonar, SideVu imaging as well as High-Wide CHIRP traditional Sonar to make your fishing easier, with an all-round view beneath the water displayed on a bright, clear screen.


- 12" WXGA touch-screen display; 1280 x 800 resolution
- IPX7 waterproof protection
- Ultra High-Definition ClearVu Sonar and SideVu Imaging
- High-wise CHIRP traditional sonar
- Built-in Wi-Fi to connect to ActiveCaptain app for access to OneChart
- Quickdraw contours lets you draw your own maps
- Power Consumption: 26w
- Transmit Power: 600w RMS / 4000w (peak to peak)
- Internal 10Hz Receiver
- 100 routes and 50,000 waypoints
- Full support of Panoptix sonars and LiveScope system
- Quickdraw Contours allows for easy mapping of your own routes and regular points of interest
- NMEA 2000 - connect to autopilots, digital switching, weather, Fusion-Link audio, VHF, AIS and more
- 2 Garmin networks large connector ports
- 2 x microSD card (32GB max card size)
- Preloaded with Bluechart g3 mapping


- Model: 010-02528-20
- Dimensions: 341mmW x 229mmH x 98mmD

- Screen Size: 12.1"
- Display Resolution: 1280W x 800V pixels
- Wattage: 26W
- NMEA0183 Compatibility: Yes
- NMEA2000 Compatibility: Yes
- Mounting Options: Bracket Mount and Flush Mount
- WiFi Connectivity: Built-in
- Expansion Card Slot: 2 x microSD
- Chirp Sonar: Yes
- Operating Frequency: 50KHz, 77KHz, 200KHz, CHIRP 150-240KHz, SideVu CHIRP 425-485kHz, UHD ClearVu CHIRP 760-880 kHz, UHD SideVu 1020-1230kHz
- Side Imaging (Transducer Dependant): Yes
- Output Power: RMS 600W
