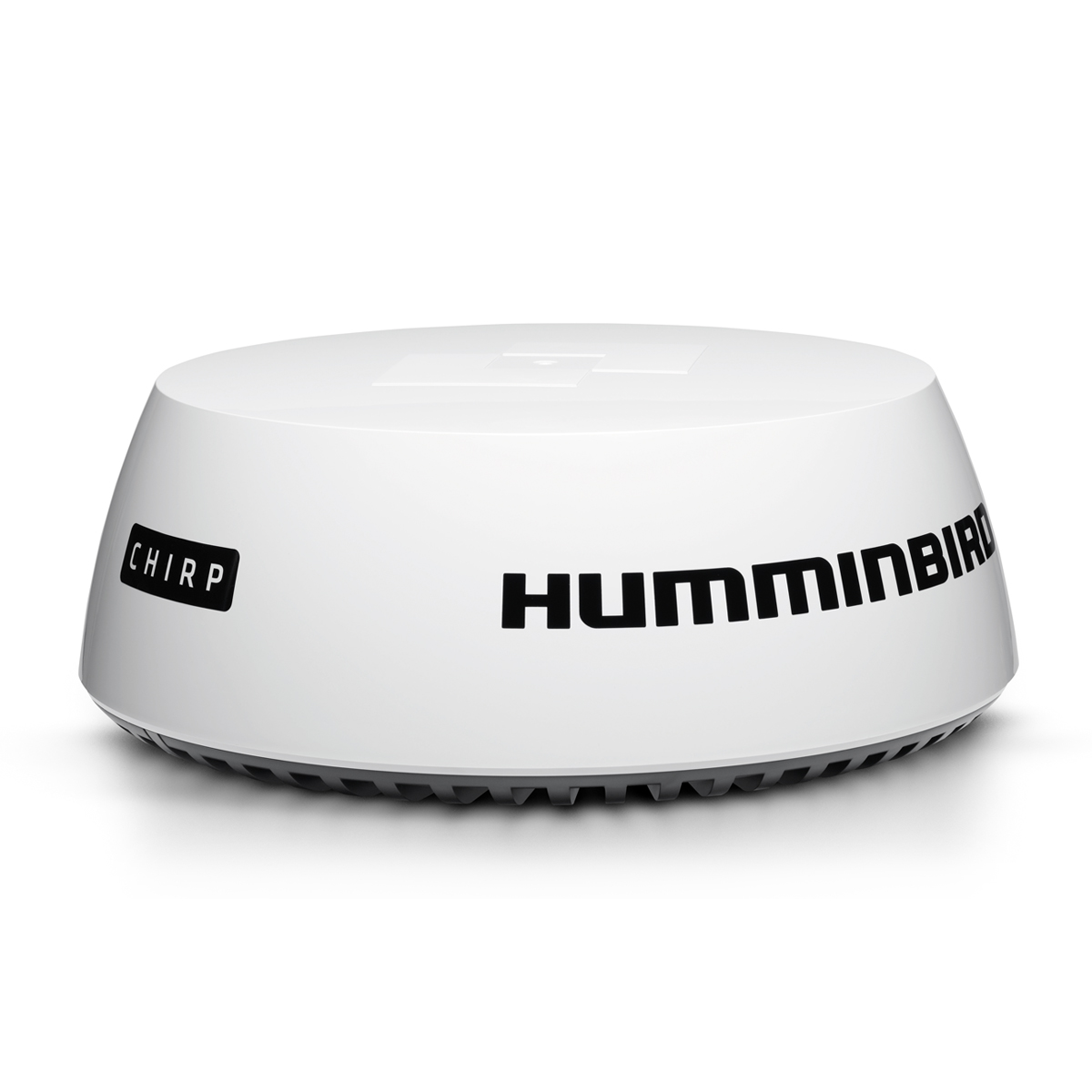

The HB 2124 is the advanced Humminbird CHIRP Radar, setting a new standard for compact solid-state radar by utilizing CHIRP pulse compression technology. This allows for superior radar imaging on both long and short ranges, improving situational awareness in low-visibility conditions and assisting in identifying floating obstacles and structures. It also offers precise tracking of weather, hazards, and other vessels for optimal navigational safety.
- Superior Radar Imaging – Humminbird’s advanced MARPA target separation displays targets with unsurpassed resolution and quality
- CHIRP Pulse Compression – Along with excellent short-range detection and detail, CHIRP Pulse compression ensures more energy reaches each target for superior imaging at long ranges
- Small Target Detection – Humminbird’s CHIRP Pulse compression identifies small or weak targets, even while positioned close to strong returns
- Immediate Awareness – Our solid-state technology is ready to use in seconds, without a length warm-up period
- Data Cable Length: 32.8′
- Antenna Dimension – 21″ Enclosed Dome; Antenna Type – Patch Array; Peak Power Output – 20 Watts, Transmit Frequency – 9354 to 9446 MHz
- Beam width (nominal) – 4.9° Horizontal and 20° Vertical; Input Voltage – 12 or 24 VDC (Miniumum – 10.8 Volts, Maximum – 31.2 Volts)
- Networking – Ethernet; Maximum Range Scale – from 1/16 to 24 nautical miles
- Power Consumption – Transmit mode – 17 Watts; Standby Mode – 7 Watts; Sleep Mode – 2 Watts
- Duplexer – Circulator; Pulse Widths @ 3 dB – 40 ns to 14.7µs; CHIRP Lengths – 400 ns to 20µs; CHIRP Bandwidth – Up to 32 MHz
- IF Bandwidth – 26 MHz; Noise – Less than 4 dB; Polarization – Horizontal
- Waterproofing: IPX6
- Weight: 12.3 lbs (5.6 kg)
Compatible with: All SOLIX Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, all HELIX 8 Series, select networking HELIX 7 Series models (HELIX 7 MSI GPS G3N, HELIX 7 MDI GPS G3N, HELIX 7 CHIRP GPS G3N, HELIX 7 MSI GPS G3, HELIX 7 MDI GPS G3, HELIX 7 CHIRP GPS G3, HELIX 7 CHIRP SI GPS G2N, HELIX 7 CHIRP DI GPS G2N, HELIX 7 CHIRP GPS G2N), all ONIX Series, all ION Series
