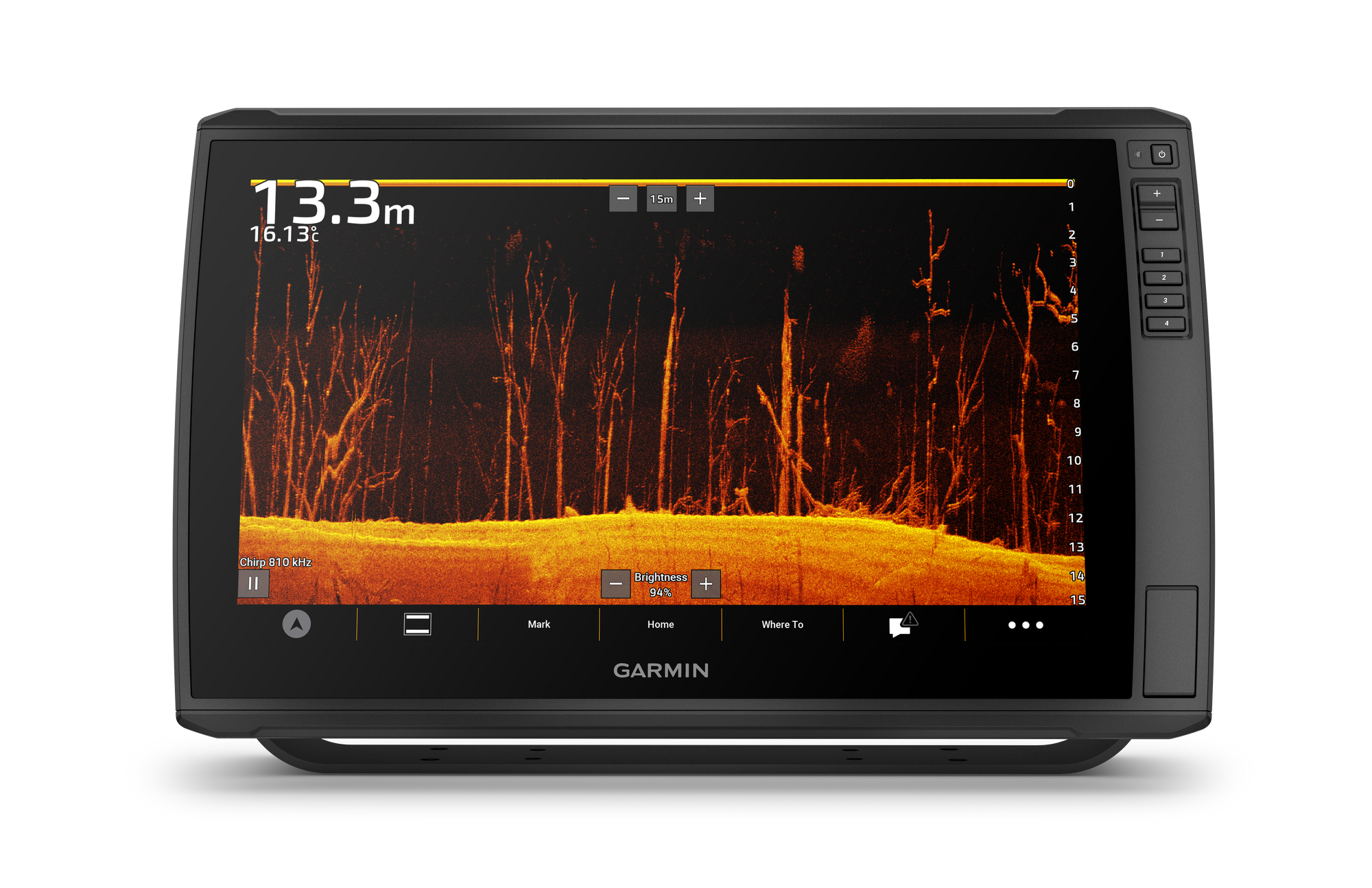

Experience unmatched clarity and control with the ECHOMAP™ Ultra 2 16" Chartplotter, crafted for dedicated anglers who demand precision and performance. Featuring a vibrant full HD touchscreen with keyed assist, this chartplotter delivers stunning visuals for sonar and navigation mapping. It supports Garmin Navionics+™ and optional Vision+™ mapping, and is compatible with the complete range of LiveScope™ sonar systems (transducers sold separately).
With built-in Ultra High-Definition sonar and CHIRP technology, you’ll see beneath the surface in photo-like detail. Share your screen via HDMI output, control functions hands-free using Bluetooth® voice commands, and wirelessly network with other onboard devices to sync sonar, waypoints, and routes. Enhanced with multi-band GPS for pinpoint accuracy and NMEA 2000® compatibility, this unit integrates seamlessly with sensors, autopilots, and audio systems. The ActiveCaptain® app unlocks even more functionality, including screen recording and community data sharing. Mounting is simple with the included bail mount and knobs for optimal viewing angles.
- 16″ touchscreen display with keyed assist
- Full HD resolution for superior clarity and brightness

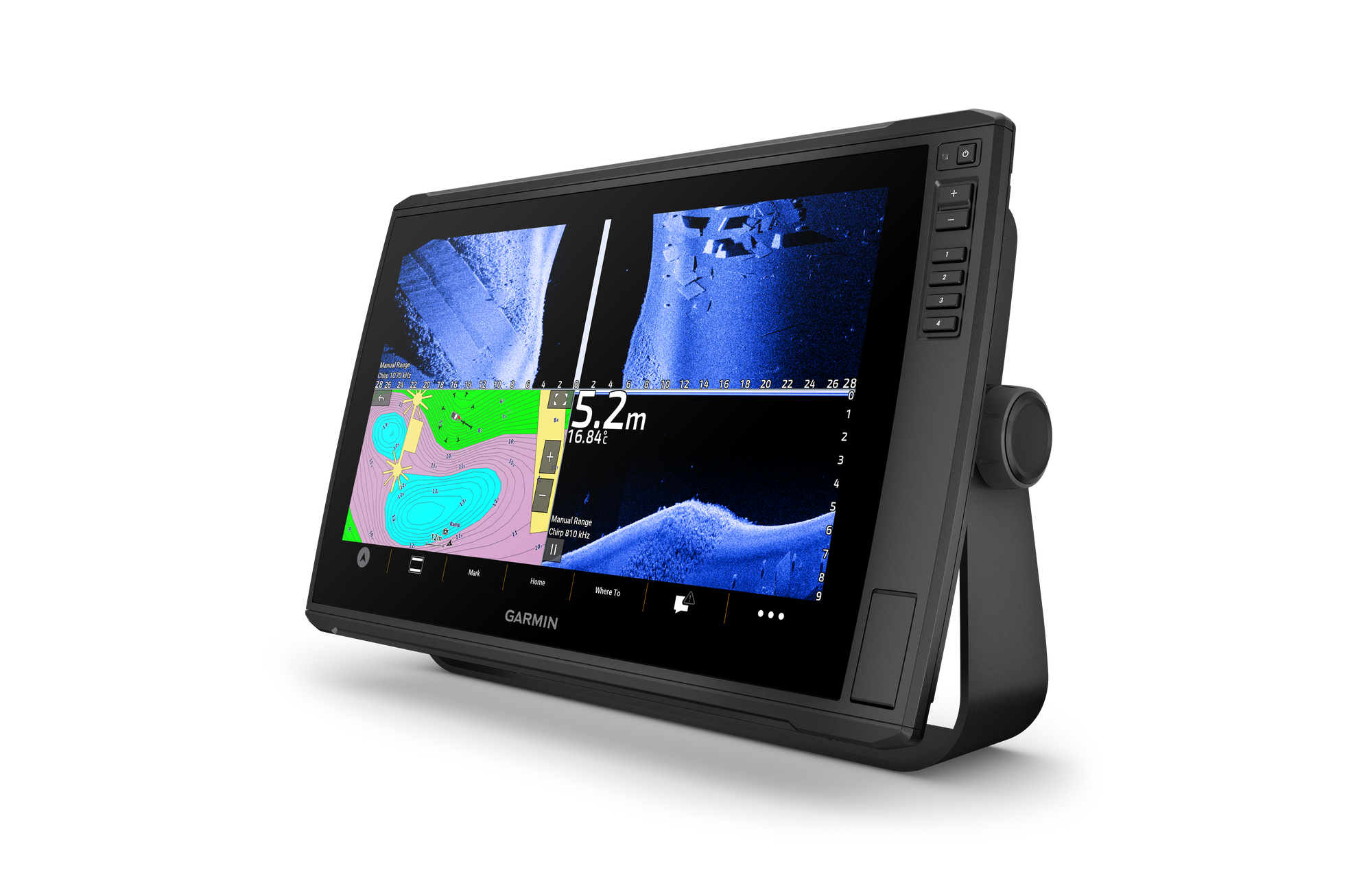

- Compatible with Garmin Navionics+™ and Vision+™ mapping

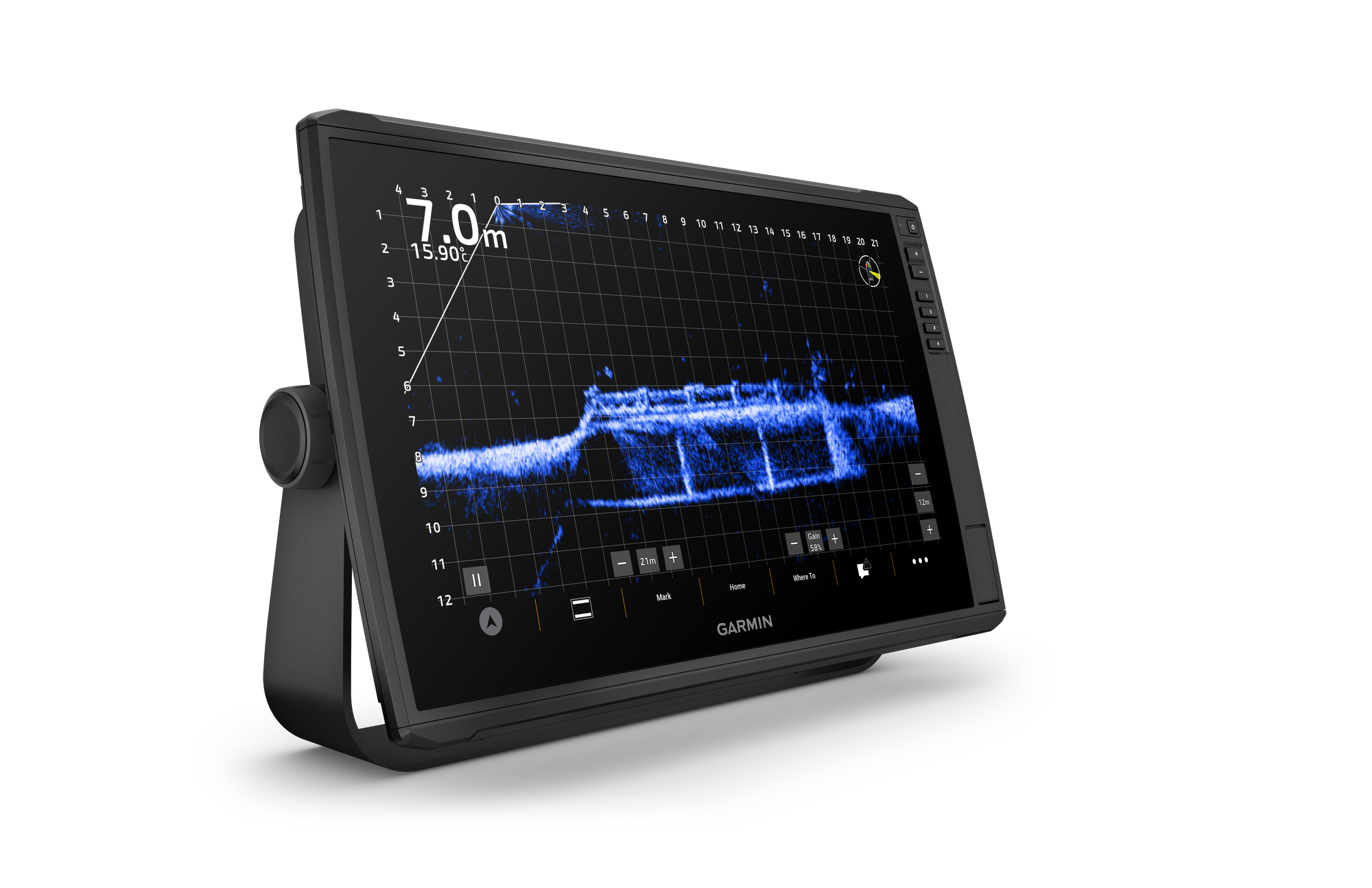

- Supports full lineup of LiveScope™ sonar systems

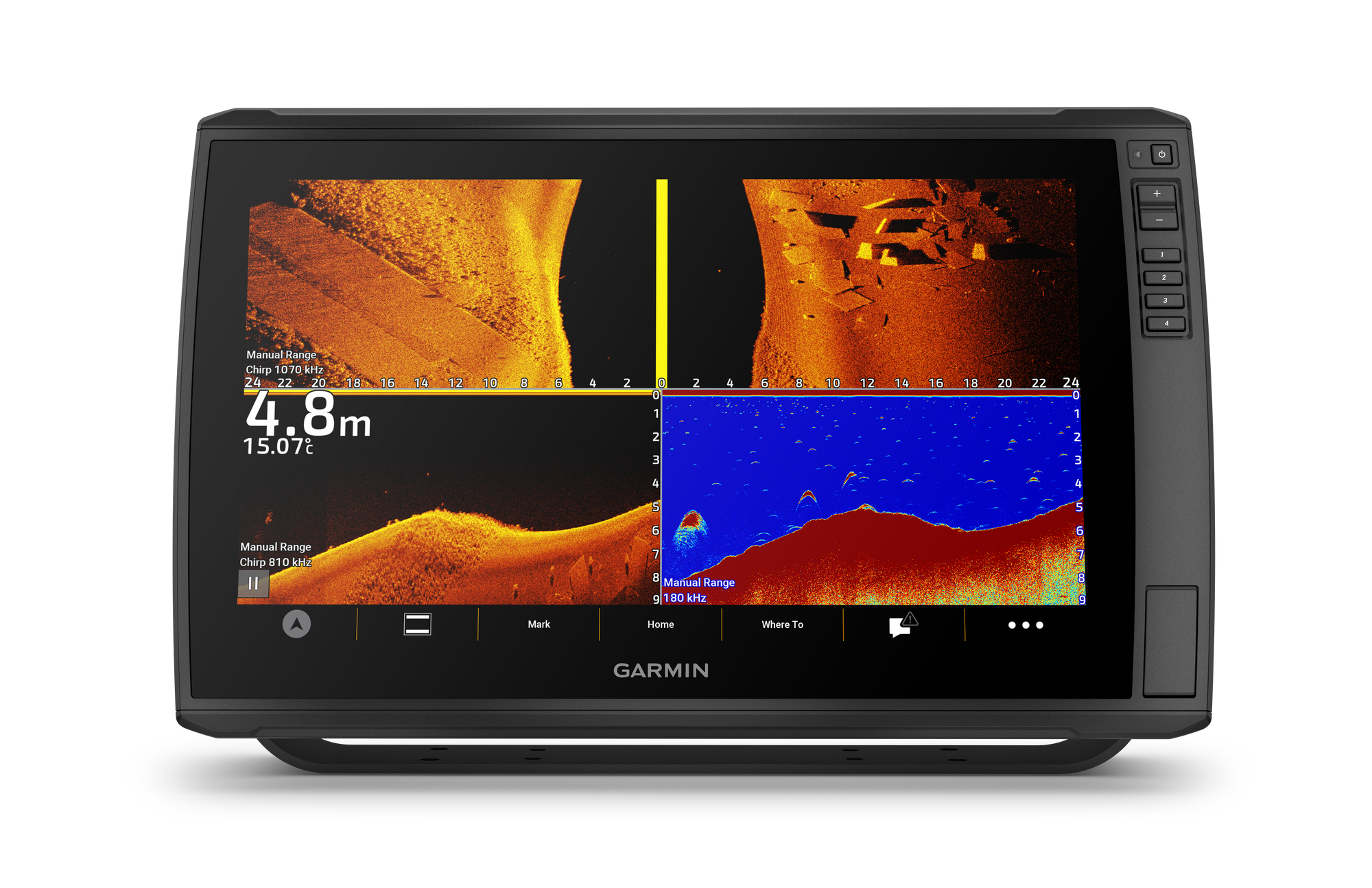

- Built-in UHD sonar with CHIRP and GT56 transducer (select models)
- HDMI output for external screen sharing
- Bluetooth® technology enables voice control
- Wireless networking for sharing sonar, waypoints, and routes
- Multi-band GPS for enhanced location accuracy
- Vivid color palettes for improved target and structure visibility
- NMEA 2000® compatibility for seamless integration
- ActiveCaptain® app support for updates and screen recording
- Force® trolling motor connectivity for route navigation

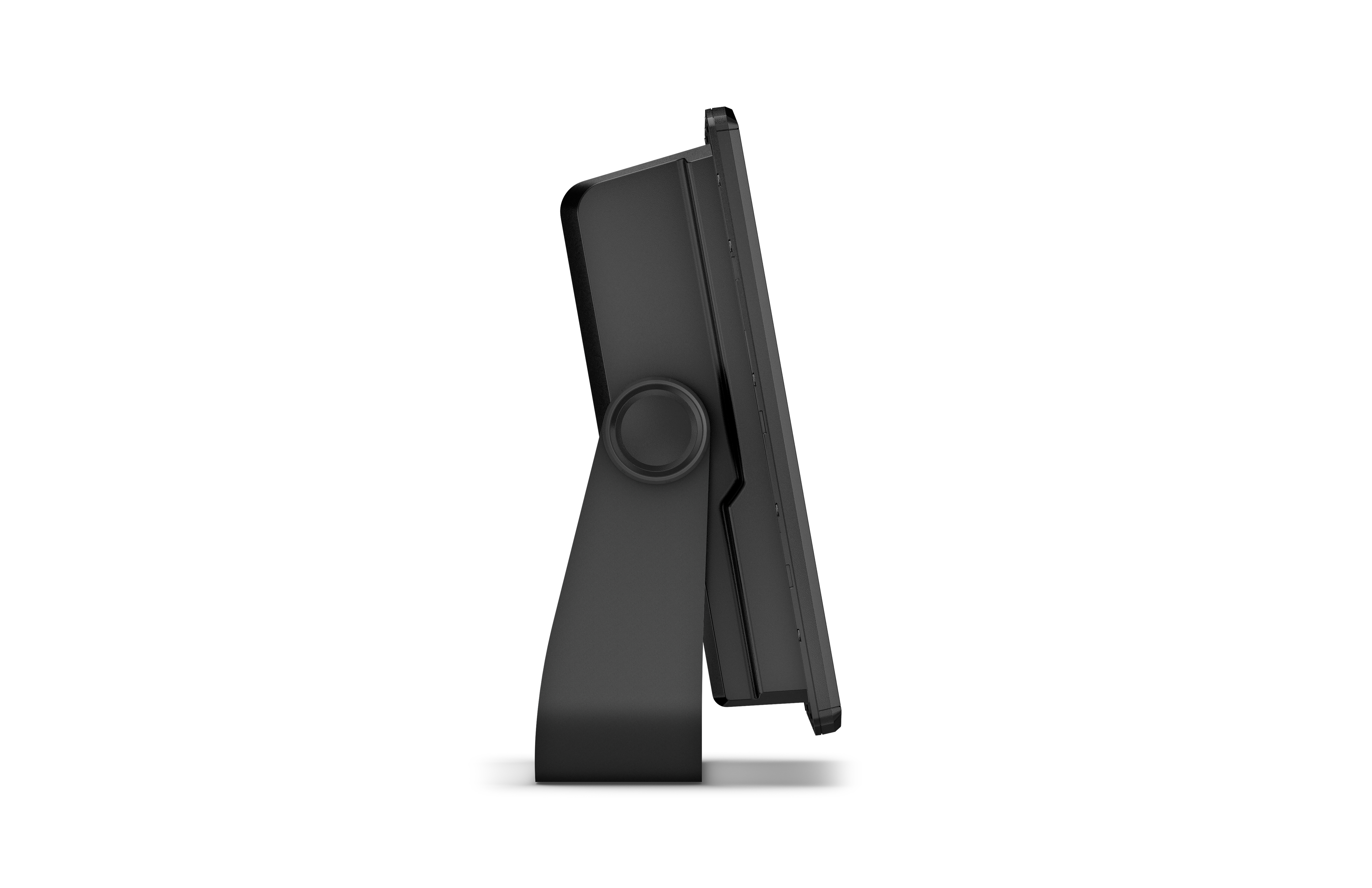

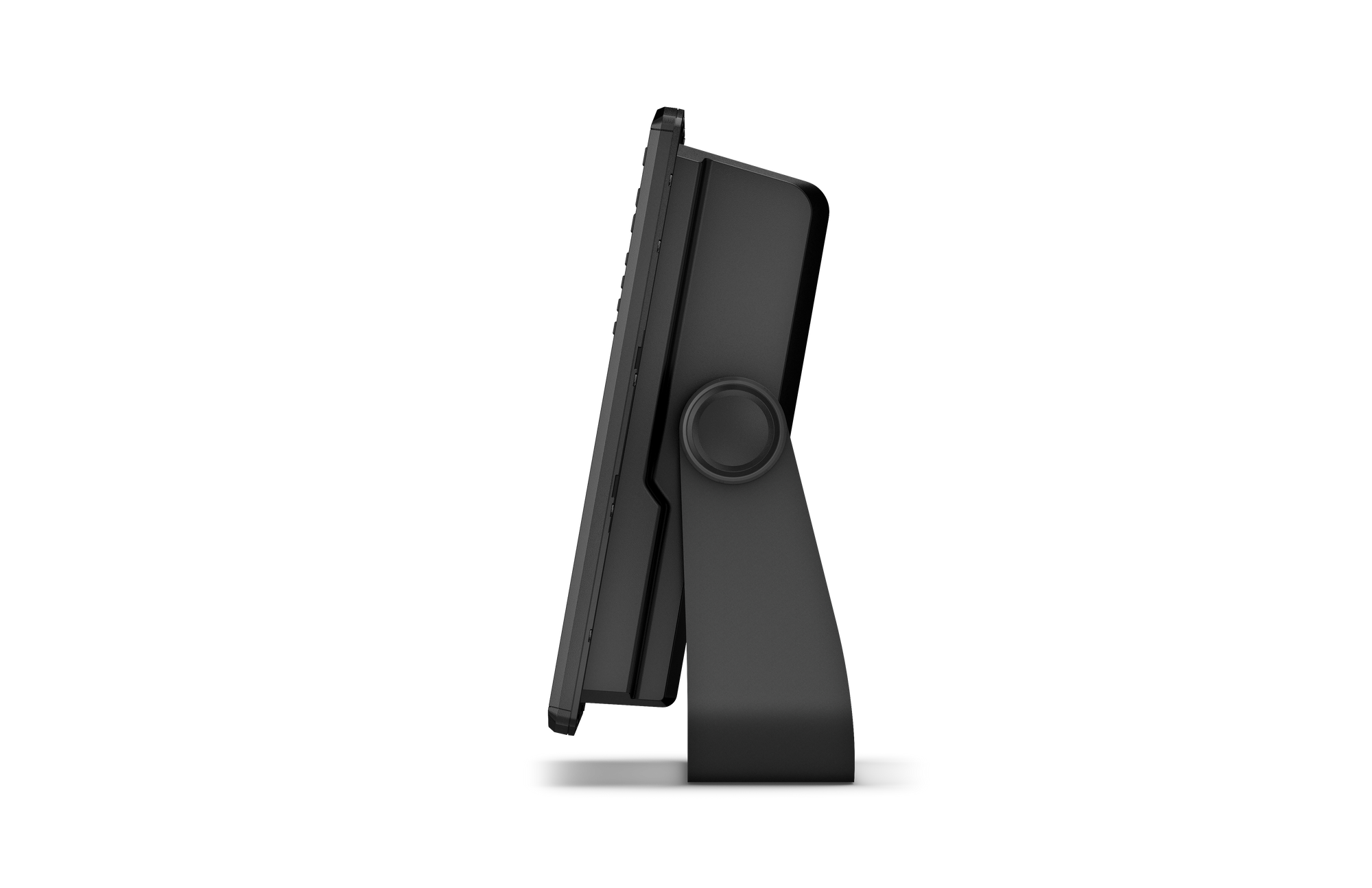

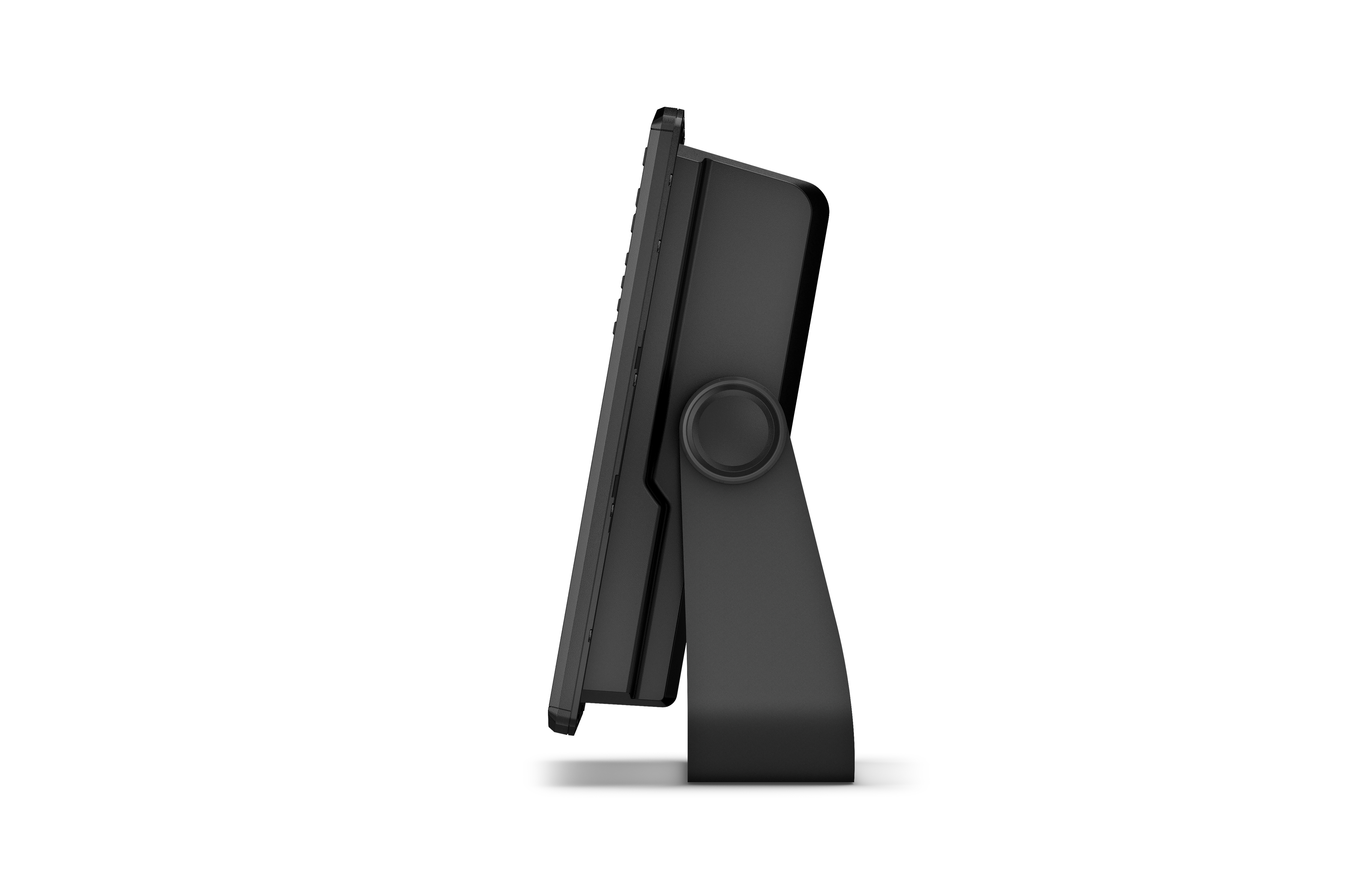

- Bail mount with knobs for adjustable surface mounting
Item | Details |
---|---|
Dimensions | 43 x 26.6 x 8 cm (16.9″ x 10.5″ x 3.14″) |
Weight | 4.31 kg (9.5 lbs) |
Water Rating | IPX7 |
Display Type | FHD, IPS |
Display Size | 34.5 x 19.5 cm; 39.7 cm diagonal (13.6″ x 7.7″; 15.6″ diagonal) |
Display Resolution | 1920 x 1080 pixels |
Mounting Options | Bail or flush |
Input | Touchscreen with Keyed Assist |
Accepts Data Cards | 2 microSD Cards |
Waypoints | 5000 |
Track Points | 50,000 |
Tracks | 50 saved tracks |
Navigation Routes | 100 |
GPS Systems | GPS, GLONASS, Galileo, BeiDou |
Receiver | 10 Hz built-in |
NMEA Compatibility | NMEA 2000 & NMEA 0183 |
WAAS Support | Yes |
Multi-band GPS | Supported |
Built-in Maps | Garmin Navionics+ Inland & Coastal |
Auto Guidance+ | Yes |
Tide Tables | Yes |
Optional Map Support | BlueChart g3/g3 Vision, LakeVü g3/g3 Ultra, Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K, Standard Mapping, Garmin Quickdraw Contours |
Chartplotter Features | AIS, DSC, Fusion-Link™, ActiveCaptain, Voice Commands, Sailing Features |
Power Input | 9 to 18 Vdc |
Typical Current Draw | 3.9 A at 12 Vdc |
Maximum Current Draw | 6.6 A at 12 Vdc |
Max Power Usage | 48 W at 10 Vdc |
Sonar Display | Supported |
Power Output | 600 W |
Traditional Sonar | Built-in CHIRP (70/83/200 kHz, L/M/H CHIRP) |
ClearVü | Built-in 260/455/800/1000/1200 kHz |

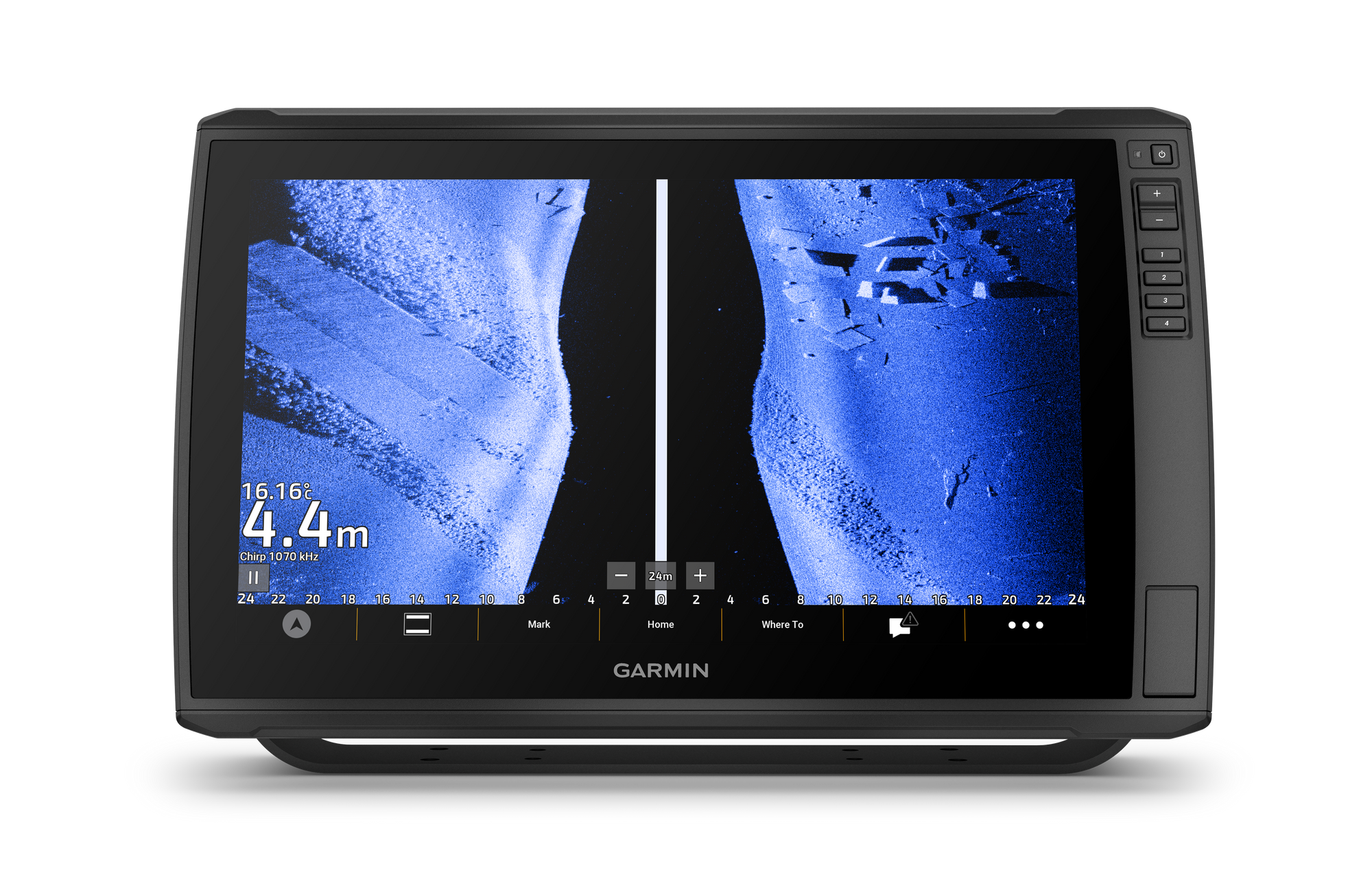

SideVü | Built-in 260/455/800/1000/1200 kHz |
Panoptix™ & LiveScope | Supported |

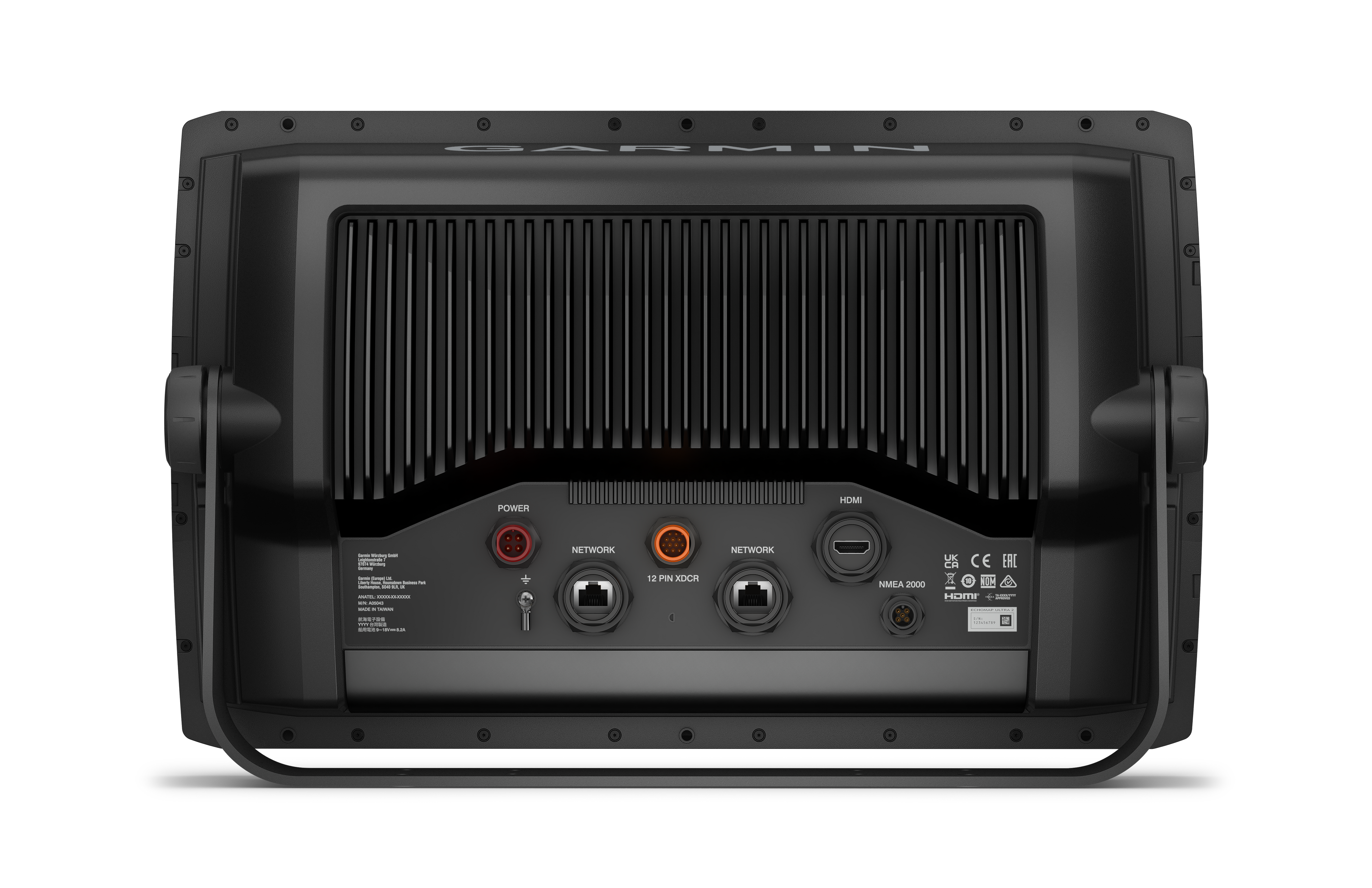

NMEA 2000® Ports | 1 |
Video Output Ports | 1 HDMI |
Garmin Marine Network Ports | 2 (large connector) |
Transducer Ports | 12-pin scanning sonar |
Bluetooth® Pairing | Supported |
ANT® Connectivity | Supported |
Garmin Wi-Fi Network | Local connection supported |
