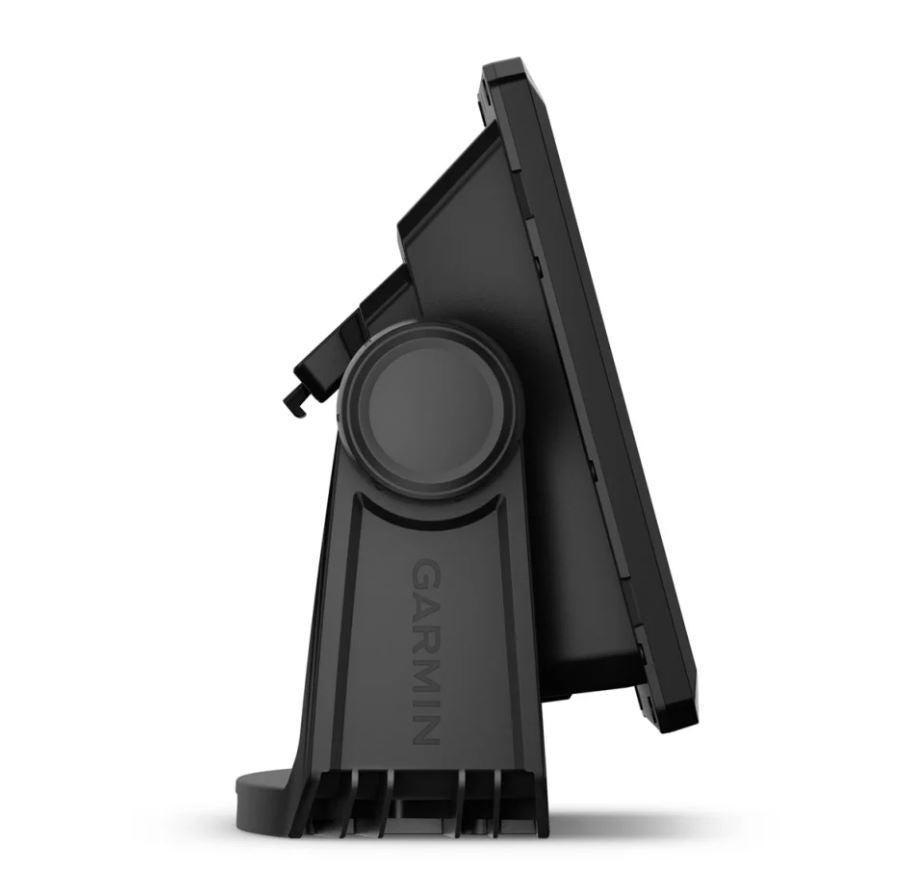

Garmin Echomap UHD2 95SV with GT56UHD-TM Transducer Navionics Fishfinder Sounder 010-02690-20

FREE SHIPPING ON ORDERS OVER $120*

They advise "Talk to a local" when it comes to increasing your catch of fish. You'll know the sea even better than they do with the ECHOMAP UHD2 chartplotter, which delivers our best-in-class sonar and mapping together with a premium touchscreen display with keyed-assist. They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 chartplotters with clear, crisp sonar and mapping.

Garmin Echomap UHD2 95SV with GT56UHD-TM Transducer Navionics Fishfinder Sounder Features

Garmin Echomap 95SV Sounder with Transducer and Navionics

- ECHOMAP UHD2 95sv
- GT56-TM transducer
- Power data cable
- Tilt mount with quick release cradle
- Protective cover
- Hardware
- Documentation

Garmin Echomap UHD2 95SV with GT56UHD-TM Transducer Navionics Fishfinder Sounder Specifications

- Model: 010-02690-20
- Physical dimensions: 10.4″ x 6.5″ x 3.2″ (26.4 x 16.6 x 8 cm)
- Weight: 2.9 lbs (1.3 kg)
- Water rating: IPX7
- Display type: WSVGA, TN
- Display resolution: 1024 x 600 pixels
- Input: Touchscreen with keyed assist

Maps and Memory

- Accepts data cards: 1 microSD™ card; 32 GB maximum card size
- Waypoints: 5,000
- Routes: 100
- Track log: 50,000 points; 50 saved tracks

Chartplotter Features

- Garmin Sonar compatible: Yes
- Supports AIS (tracks target ships position): Yes
- Supports DSC (displays position data from DSC-capable VHF radio): Yes
- Frequencies supported: CHIRP (low, mid, high) / Traditional: 50/77/83/200 kHz / ClearVü: 260/455/800/1000/1200 kHz
- Transmit power: 500W
- CHIRP sonar technology: Yes (Built-in)
- ClearVü: Yes with CHIRP (built-in)

Connections
