Penn International VISX 2 Speed Overhead Game Reel

The PENN International VISX series is designed and manufactured in the USA of domestic and imported components. Precision machined from high-strength, lightweight, aircraft grade aluminium in our Philadelphia machining center. Our experienced crew has been designing and producing durable, high-quality reels in this facility since 1932. The VISX consists of a large stainless steel gear train for strength and speed, and a Dura-Drag system which results in a smoother start up and virtually eliminates hesitation, even under extreme drag settings.

Features

- Machined and anodised aluminium body and sideplates
- Stainless steel main and pinion gears
- Quick-Shift II™ 2-speed system
- Dura-Drag™ system
- Versa-Strike Adjustable Strike stop
- Double-dog ratchet anti-reverse
- Line Capacity Rings
- Made in the USA of domestic and imported components

Specifications

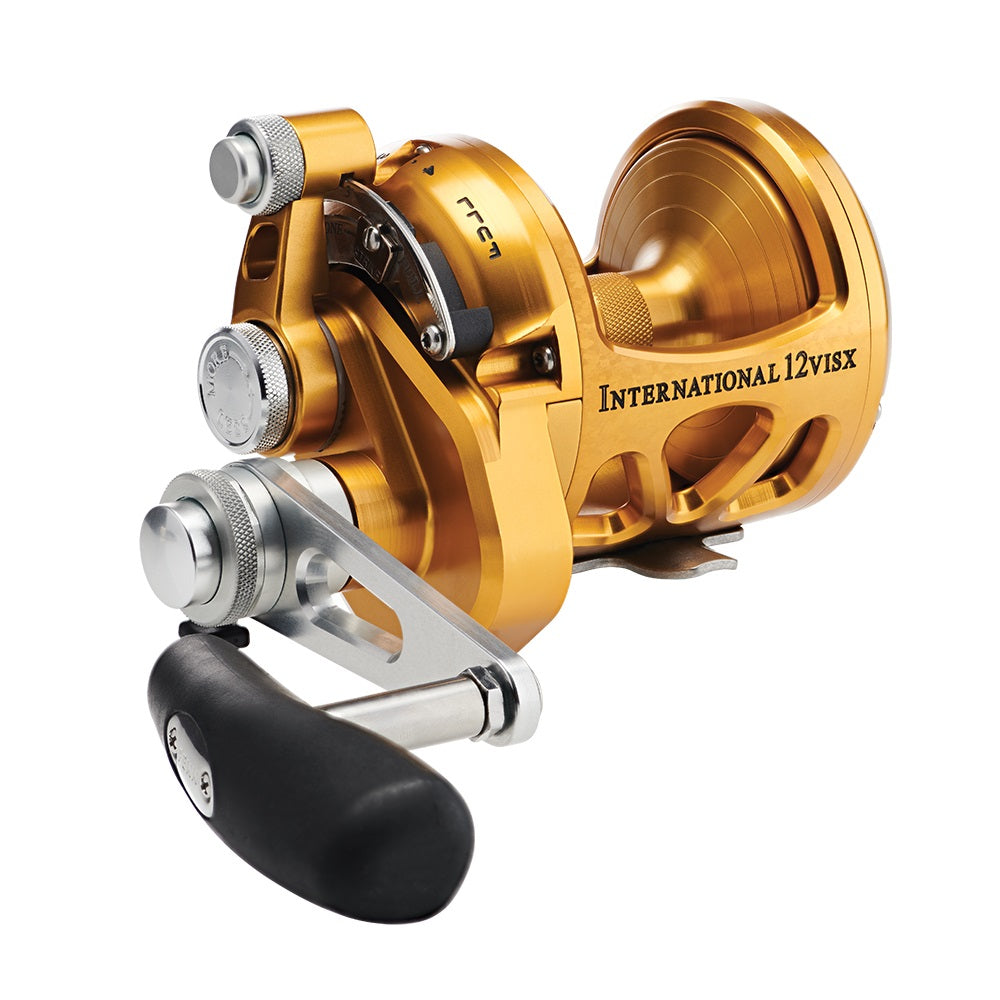

- Model: INT12VISX
- Gear Ratio: 5.1:1 / 1.8:1
- Mono Capacity (yd/lb): 1510/10 1030/12 880/15
- Braid Capacity (yd/lb): 985/40 840/50 700/65
- Max Drag (lb): 40
- Bearings: 4+1

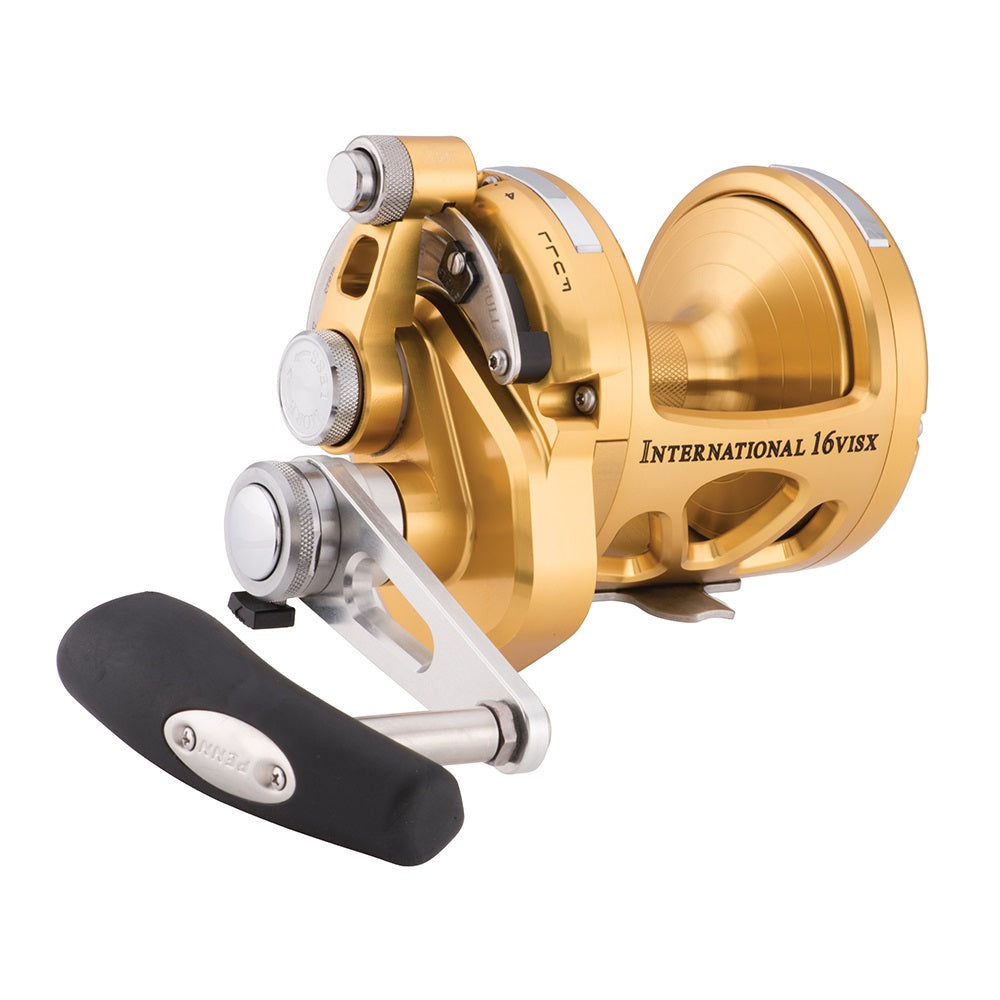

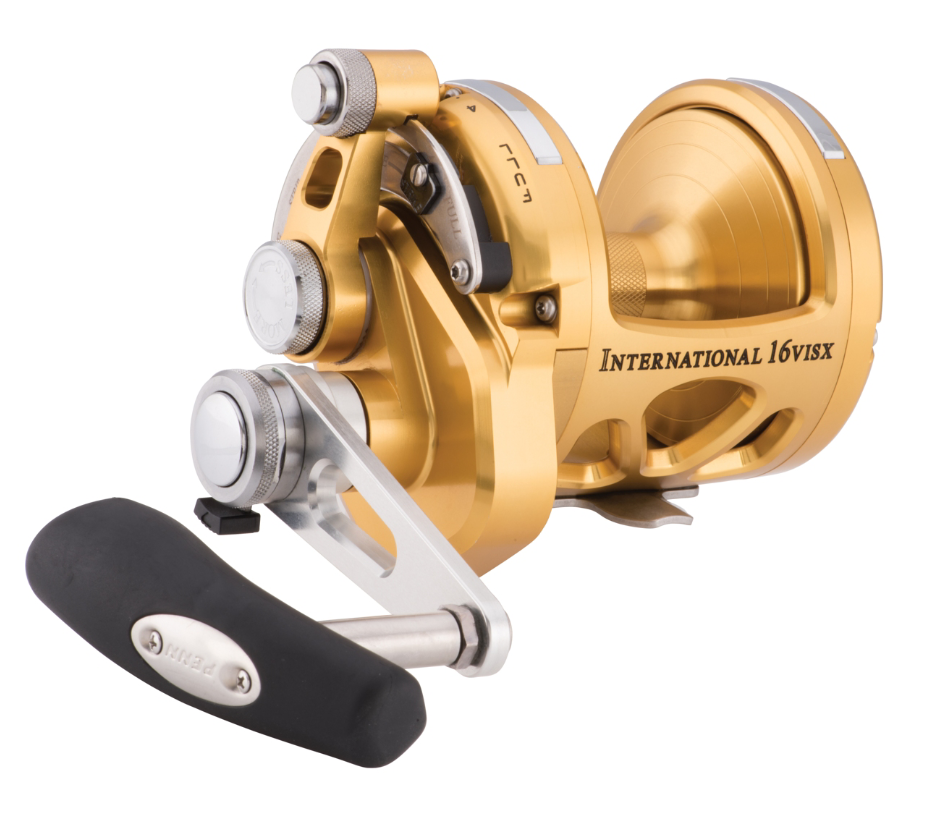

- Model: INT16VISX
- Gear Ratio: 4.6:1 / 1.6:1
- Mono Capacity (yd/lb): 745/20 555/30 280/60
- Braid Capacity (yd/lb): 890/65 765/80 655/100
- Max Drag (lb): 45
- Bearings: 4+1

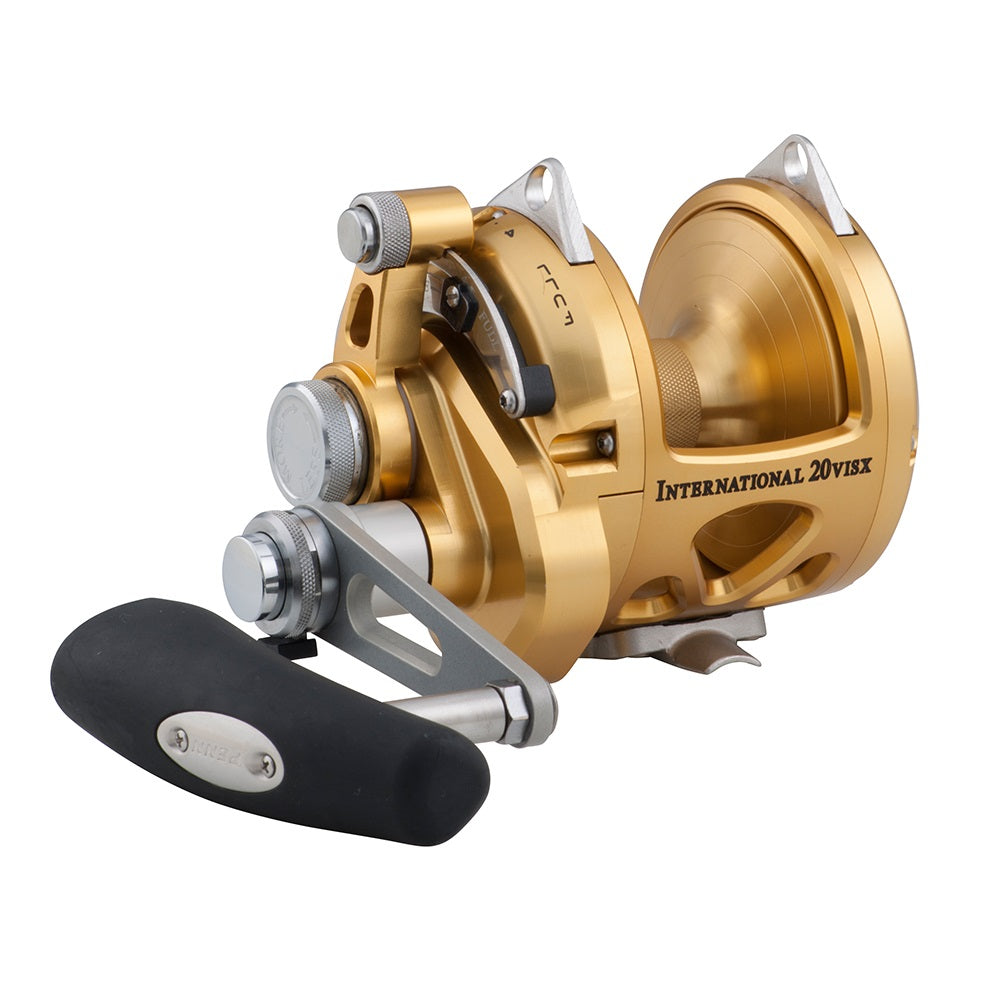

- Model: INT20VISX
- Gear Ratio: 4.1:1 / 1.4:1
- Mono Capacity (yd/lb): 490/40 365/50 325/60
- Braid Capacity (yd/lb): 450/0.61 335/0.71 295/0.76
- Max Drag (lb): 50
- Bearings: 4+1

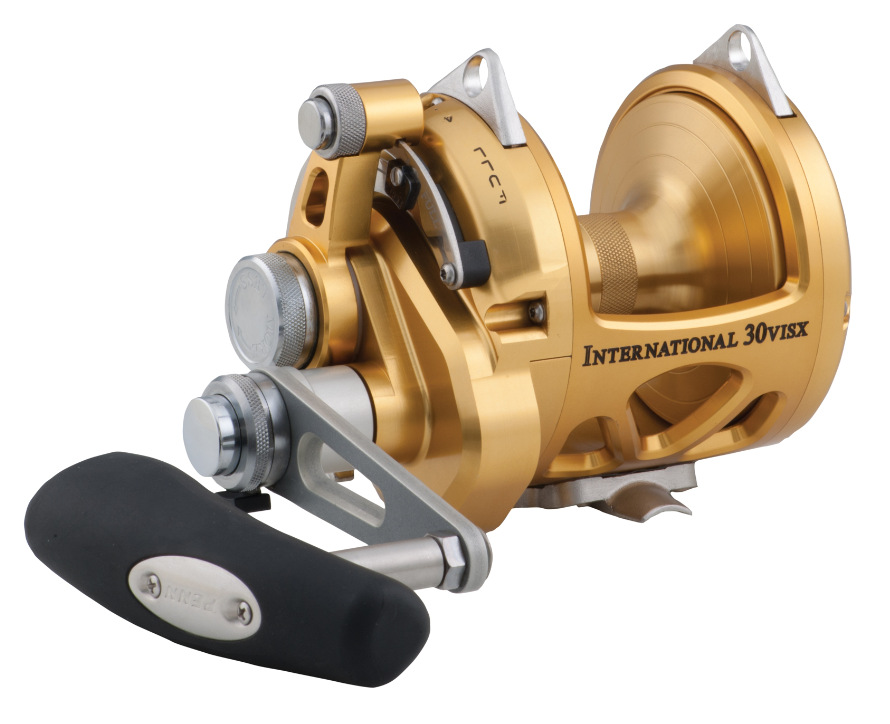

- Model: INT30VISX
- Gear Ratio: 4.1:1 / 1.4:1
- Mono Capacity (yd/lb): 590/40 440/50 390/60
- Braid Capacity (yd/lb): 905/100 750/130 555/200
- Max Drag (lb): 55
- Bearings: 4+1

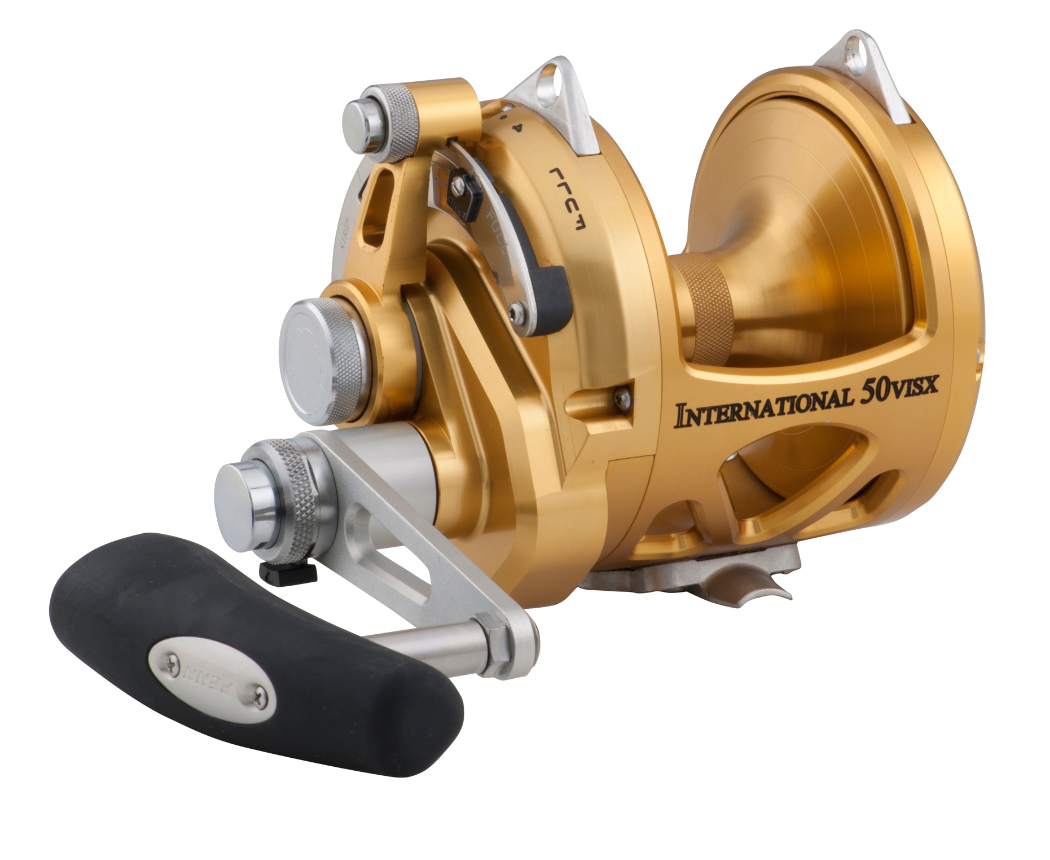

- Model: INT50VISX
- Gear Ratio: 3.5:1 / 1.3:1
- Mono Capacity (yd/lb): 870/40 645/50 575/60
- Braid Capacity (yd/lb): 1330/100 1105/130 815/200
- Max Drag (lb): 60
- Bearings: 4+1
