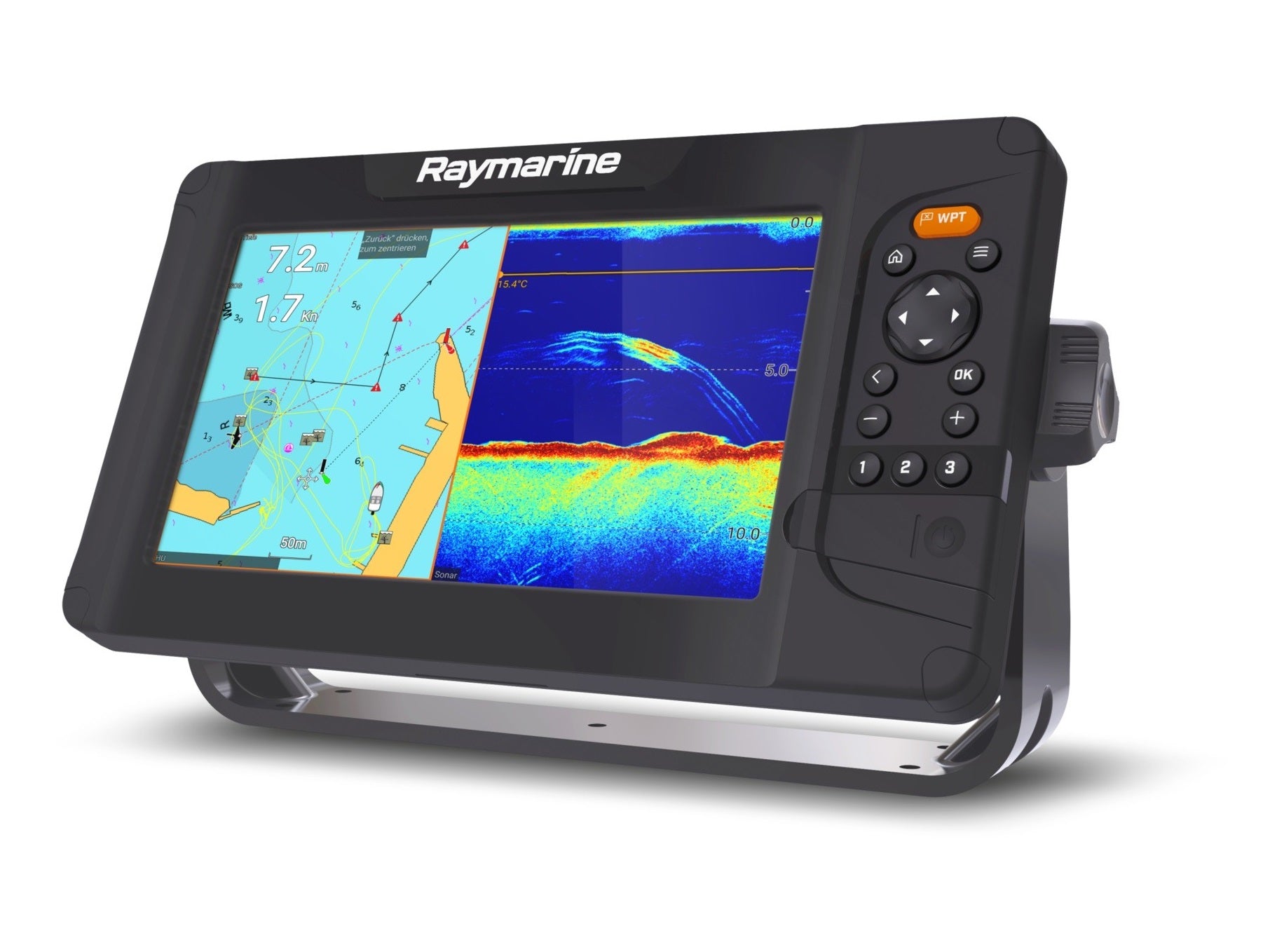

Raymarine Element 9 S GPS Chartplotter Sonar Sounder Fishfinfer Unit E70533

PHONE ORDERS (07) 4357 8991

The Element S series of navigation displays gives you the freedom to enjoy the open waters. Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful colour. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.


- Category-leading quad-core processor delivers fast chart redraw and responsive performance
- Fast and accurate 10hz GPS/GNSS sensor
- Rugged design and backed by Raymarine’s three-year warranty (product registration required)
- Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
- Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
- Built-in High CHIRP sonar for depth and bottom contour imaging
- Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
- Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
- From sailing to power cruising to fishing, the LightHouse Sport OS is easy to customize to your type of boating
- An oversized waypoint key for quick and easy marking of your favourite locations
- Three user-programmable quick keys to access your favourite pages with one button push
- Live menus let you customize charts while seeing the navigation display change in real time

Box Contents

- Element 9S display
- Surface mount gasket
- Suncover
- Trunnion knobs x2
- Documentation pack
- Surface mount stainless steel fixings x4 (M4x40 machine screw, M4 flatwasher, M4 locking nut)
- Power / NMEA2000 cable (includes 1.5m (4.92ft) power lead and 0.5m (1.64ft) NMEA2000 lead).


- Display Size: 9.0" Optically Bonded LCD
- Display Resolution: 800 x 480 WVGA
- Display Type: Non-Touch
- Brightness: 1,500 nits
- Product Weight (lbs): 5.0
- Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
- Storage temperature range: -30°C to +70°C (-22°F to 158°F)
- Voltage: 12V DC (8V to 16V DC)
- Power Consumption: (max 12V DC) 20 Watts
- Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector.
- Supports CPT-S transom and thru-hull transducers
- Sonar Depth CHIRP Sonar = 274m (900 feet)
- Radar Quantum wireless CHIRP compatible Wi-Fi only connection
- Doppler Radar N/A
- NMEA2000 1 x NMEA2000 port (DeviceNet microC)
- SeaTalkng Requires A06045 DeviceNet female (F) adapter cable - 400mm
- WiFi: 802.11 b / g / n
- Sonar Mapping Raymarine RealBathy and Navionics SonarChart Lice
- Waypoint / Routes / Tracks 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
- External Memory: 1 x microSD slots
- Dimensions: 287 x 161 x 62mm
