Sold Out $1,749.00 $2,000.00
FREE SHIPPING ON ORDERS OVER $99*

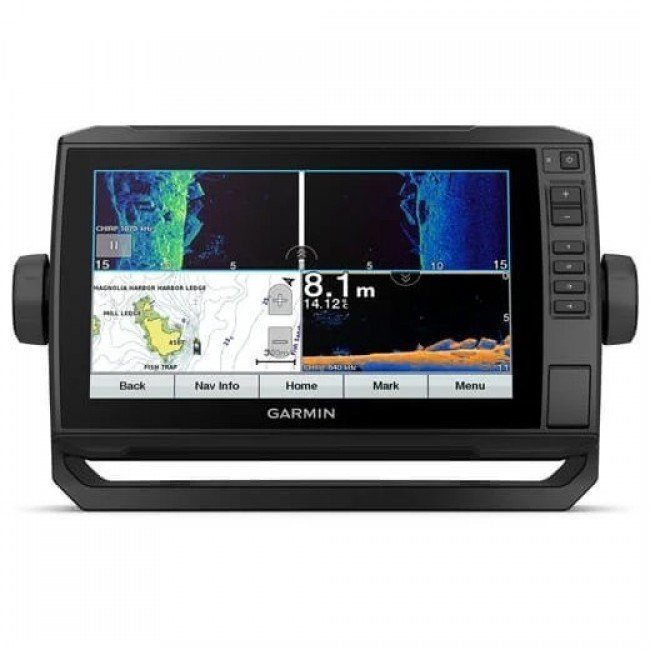

PHONE ORDERS (07) 4357 8991Garmin EchoMap 95sv UHD Combo features Ultra High-Definition ClearVu Sonar, SideVu imaging as well as CHIRP traditional Sonar to make your fishing easier, with an all-round view beneath the water.
- 9" WVGA touch-screen display; 800 x 400 resolution
- IPX7 waterproof protection
- Ultra High-Definition ClearVu sonar
- CHIRP traditional sonar
- Built-in Wi-Fi to connect to ActiveCaptain app for access to OneChart
- Power Consumption: 18w
- Transmit Power: 500w rms / 4000w (peak to peak)
- 100 routes and 50,000 waypoints
- Quickdraw Contours allows for easy mapping of your own routes and regular points of interest
- Garmin Panoptix Port
- 1 x microSD card (32GB max card size)
- Preloaded with Bluechart g3 mapping
- Internal 5Hz GPS/GLONASS Receiver refreshes position and Heading 10 times/second, resulting in a fluid and constant on screen location for navigating and making waypoints
- NMEA 2000 - connect to autopilots, digital switching, weather, Fusion-Link audio, VHF, AIS and more
- Model: 010-02525-20
- Dimensions: 282mmW x 164mmH x 60mmD
- Screen Size: 9"
- Display Resolution: 800W x 400V pixels
- Wattage: 18W
- WiFi Connectivity: Builtin
- NMEA0183 Compatibility: Yes
- NMEA2000 Compatibility: Yes
- Mounting Options: Bracket Mount and Flush Mount
- WiFi Connectivity: Built-in
- Expansion Card Slot: 1 x microSD
- Chirp Sonar: Yes
- Operating Frequency: 50KHz, 77KHz, ClearVu CHIRP 260/455kHz, SideVu CHIRP 455/800kHz, 200KHz, CHIRP 150-240KHz
- Side Imaging (Transducer Dependant): Yes
- Output Power: RMS 500W
