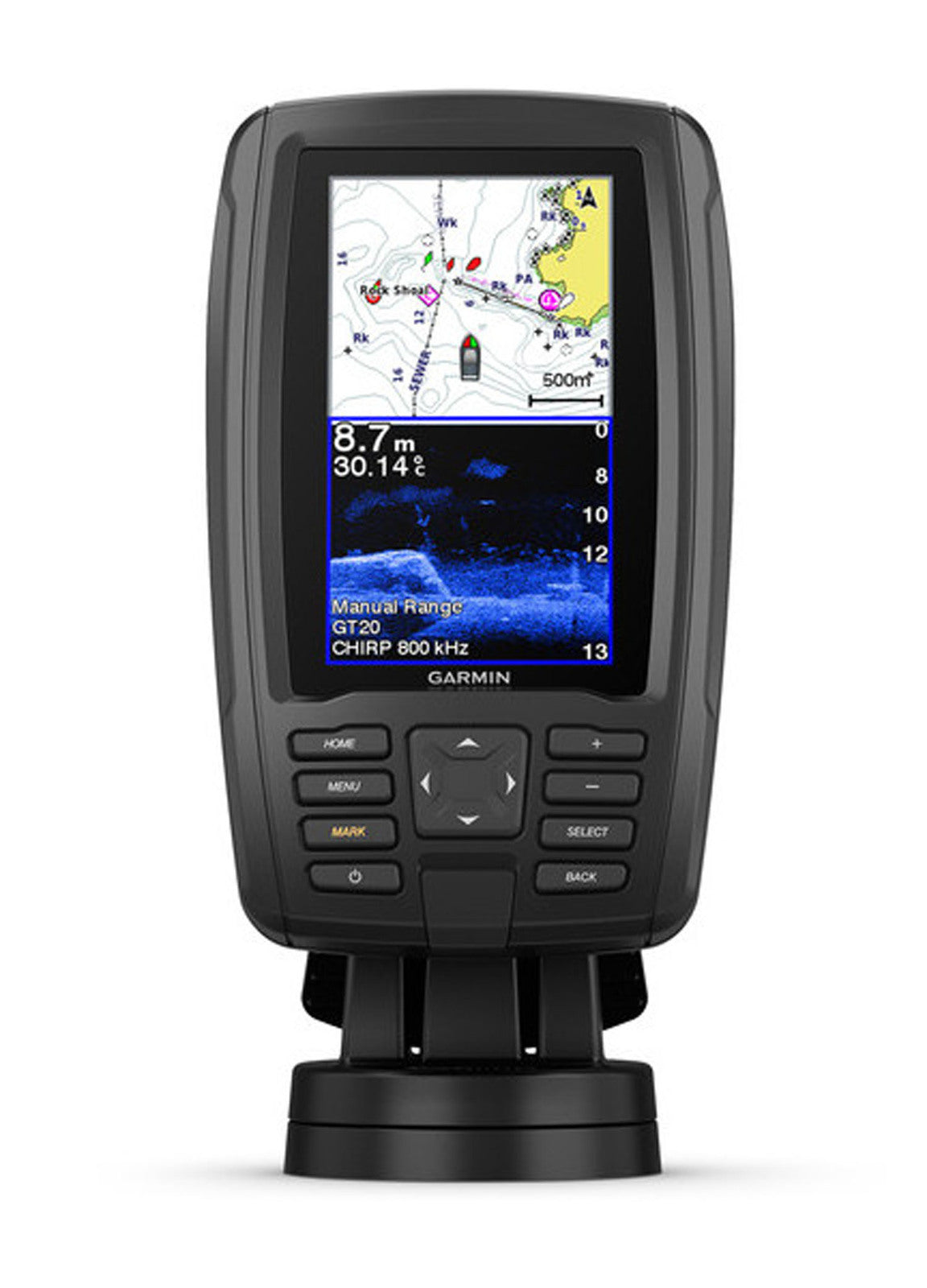

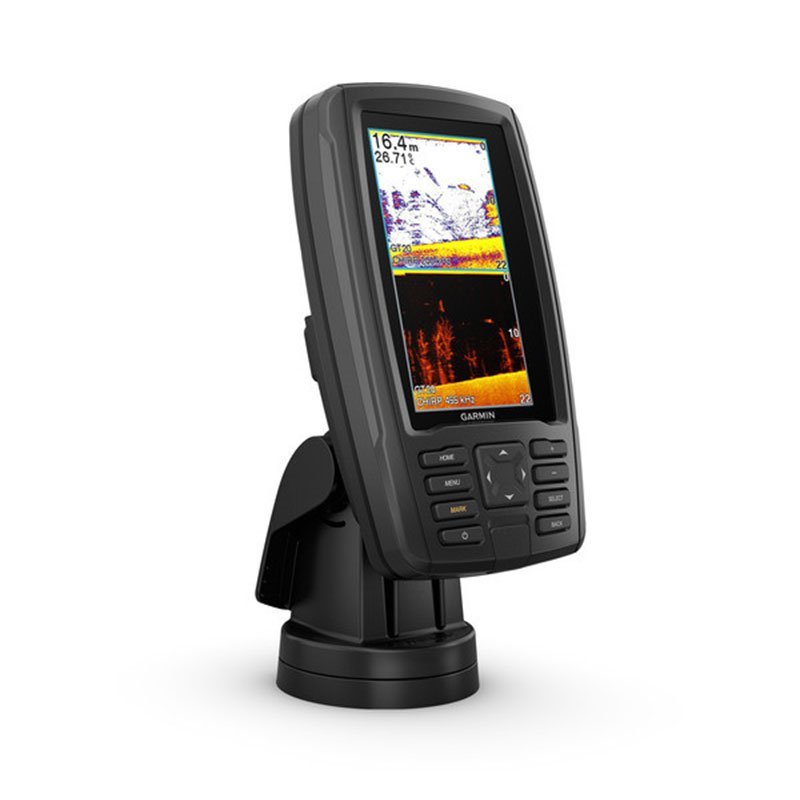

Garmin Echomap Plus 45CV with Transducer AUS NZ Charts Fishfinder Sounder 010-01887-20

FREE SHIPPING ON ORDERS OVER $99*

PHONE ORDERS (07) 4357 8991

The advantages of this small combination are numerous. It includes a bright screen 4.3" display that is simple to read on a sunny day on the water and is simple to install and use. It has a single transducer with Garmin CHIRP ClearVü scanning sonar for almost photographic pictures of what's below the boat and CHIRP conventional sonar, which offers impressive target separation. Maps of Australia and New Zealand are already loaded.

Additionally, it comes with Quickdraw Contours mapping software, which allows you to rapidly generate customised fishing maps on-screen while you fish. These are your maps. Other ECHOMAP or STRIKER units can access your route information and waypoints. Additionally, it has a quick-release mechanism that makes it simple to swiftly mount and unmount your device.

Garmin Echomap Plus 45CV with Transducer AUS NZ Charts Fishfinder Sounder Features

Garmin Echomap Plus 45CV Fishfinder Sounder

- ECHOMAP Plus 45cv with BlueChart g2 for Australia and New Zealand
- GT20-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Hardware
- Documentation

Garmin Echomap Plus 45CV with Transducer AUS NZ Charts Fishfinder Sounder Specifications

- Model: 010-01887-20
- Physical dimensions: 4.0" x 8.0" x 3.1" (10.2 x 20.4 x 0.4 cm)
- Weight: 1.6 lbs (0.7 kg)
- Water rating: IPX7
- Display type: WQVGA display
- Display resolution: 480 x 272 pixels
- Wireless connectivity: Yes
- Power Consumption: 5W
- Antenna: Internal or external over NMEA0183
- Mounting options: Bail or flush
- Receiver: 5 Hz
- Garmin Marine Network™ ports: None

Maps and Memory

- Accepts data cards: 1 microSD™ card; 32 GB maximum card size
- Waypoints: 5,000
- Routes: 100
- Track log: 50,000 points; 50 saved tracks
- Preloaded maps: BlueChart® g2 (coastal maps)

Chartplotter Features

- Garmin Sonar compatible: Yes
- Supports AIS (tracks target ships position) Yes
- Supports DSC (displays position data from DSC-capable VHF radio) Yes
- Frequencies supported: CHIRP (low, mid, high) / Traditional: 50/77/83/200 kHz / ClearVü: 260/455/800 kHz
- Transmit power: 500 W (RMS) / 4,000 W (peak to peak)
- CHIRP sonar technology: Yes (Built-in)
- ClearVü: Yes with CHIRP (built-in)
- SideVü: No
- Maximum depth: 2,300 ft @ 77 kHz, freshwater / 1,100 ft @ 77 kHz, saltwater / (depth capacity is dependent on water bottom type and other water conditions)
- Bottom lock (shows return from the bottom up) Yes
- Water temperature log and graph: Yes
- Sonar recording: Yes
- Sonar history rewind: Yes
