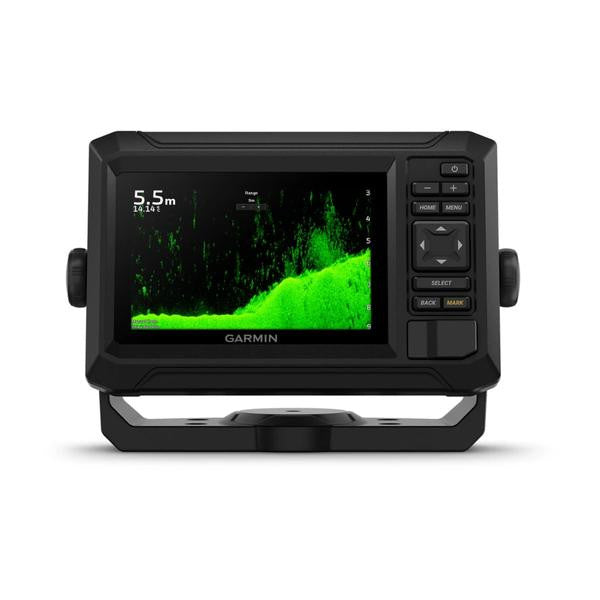

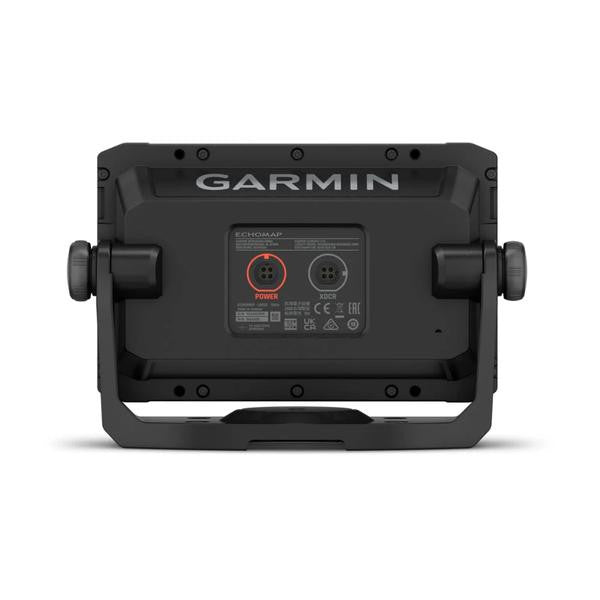

Garmin Echomap UHD2 55CV AUS NZ Fishfinder Sounder 010-02592-20

FREE SHIPPING ON ORDERS OVER $99*

PHONE ORDERS (07) 4357 8991

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5″ and 7″ chartplotters with clear, crisp sonar and mapping. The bright 5″ keyed display is made for convenience. Get double the views with Garmin CHIRP traditional and ClearVü scanning sonars.

What’s under the water looks even better with high-contrast vivid colour palettes. Wi-Fi® connectivity between compatible chartplotters makes it easy to share info.

Garmin Echomap UHD2 55CV AUS NZ Fishfinder Sounder Features

Garmin Echomap 55CV Fishfinder Sounder

- ECHOMAP UHD2
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation

Garmin Echomap UHD2 55CV AUS NZ Fishfinder Sounder Specifications

- Model: 010-02592-20
- Physical dimensions: 7.4″ x 4.8 x 2.4″ (18.8 x 12.2 x 6.2 cm)
- Weight: 1.1 lbs (0.5 kg)
- Water rating: IPX7
- Display type: WVGA, IPS
- Display resolution: 800 x 480 pixels
- Wireless connectivity: Yes

Maps and Memory

- Accepts data cards: 1 microSD™ card; 32 GB maximum card size
- Waypoints: 5,000
- Routes: 100
- Track log: 50,000 points; 50 saved tracks

Chartplotter Features

- Garmin Sonar compatible: Yes
- Frequencies supported: CHIRP (low, mid, high) / Traditional: 70/83/83/200 kHz / ClearVü: 260/455/800/1000/1200 kHz
- Transmit power: 500 W

Connections
